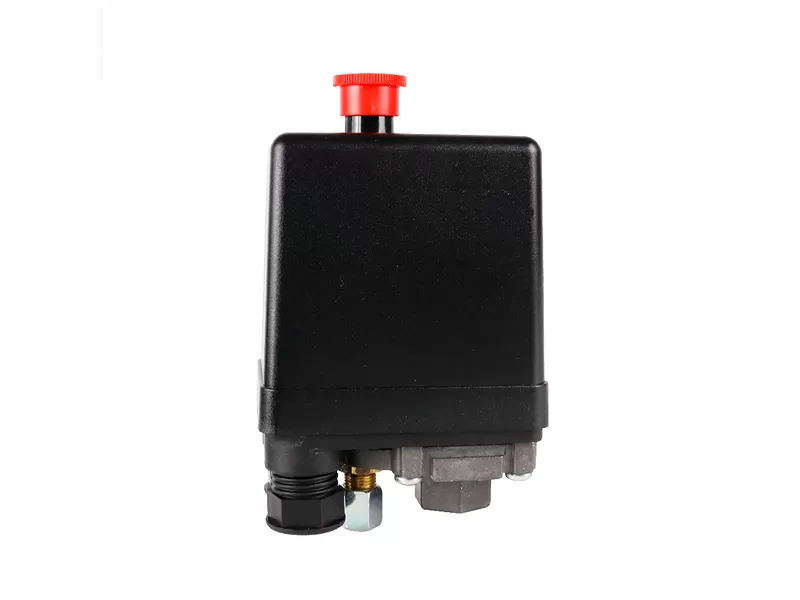

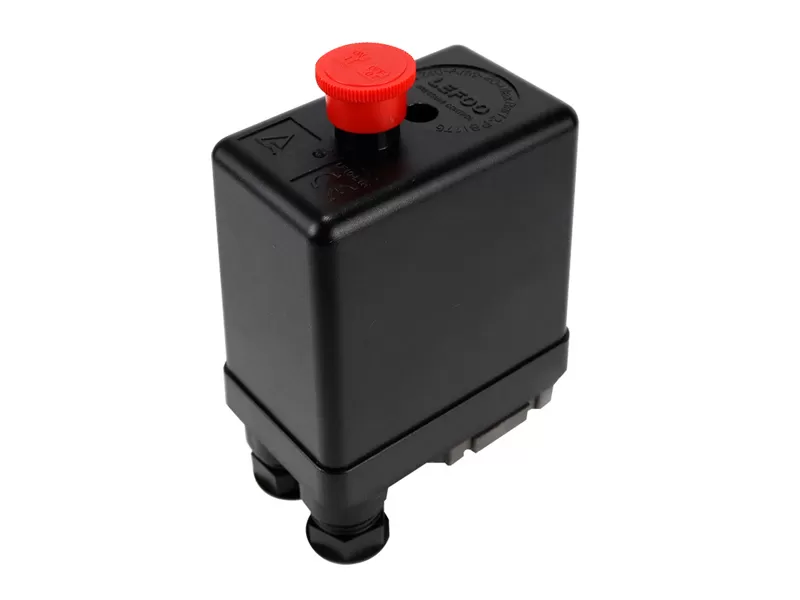

The LF10-L series pressure switch is used to control the pressure in the air compressor cylinder, allowing it to operate between two preset pressure values. The pressure switch is equipped with a relief valve, which can prevent the air compressor from starting due to overload. The four-way base interface makes the installation of supporting components such as safety valves and pressure gauges easier.
| Model | LF10-L1H | LF10-L4H |
Pressure Regulation Range kgf/cm² | 3.0-12.5 | 3.0-12.5 |
Pressure Difference (Non Adjustable) kgf/cm² | 2.0/2.5/3.0 | 2.0/2.5/3.0 |
Factory Settings kgf/cm² | 6.0-8.0 | 6.0-8.0 |
| Rated Voltage and Current | 240VAC, 20A 120VAC, 26A | 240VAC, 20A 120VAC, 26A |
| Contact Method | Normally closed | Normally closed |
| Interface Standards | G1/4, G3/8 or 1/4, 3/8NPT internal screw | G114, G3/8 or 1/4, 3/8NPT internal screw (four-way) |
