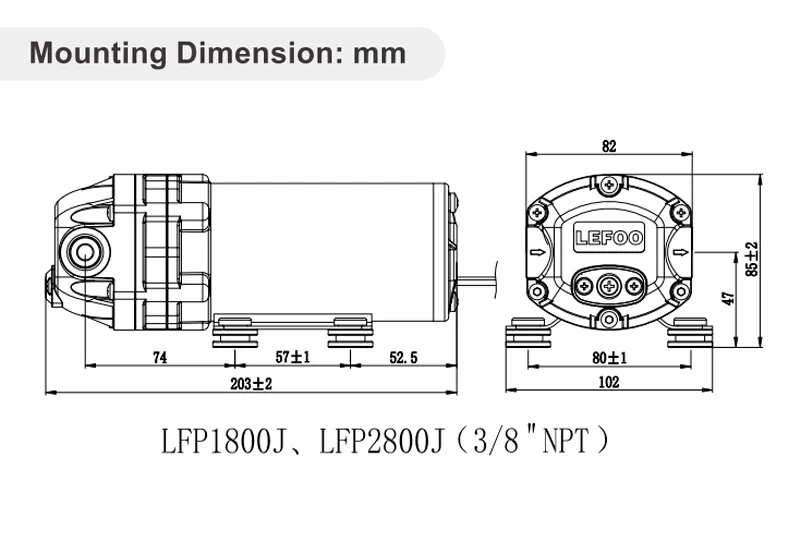

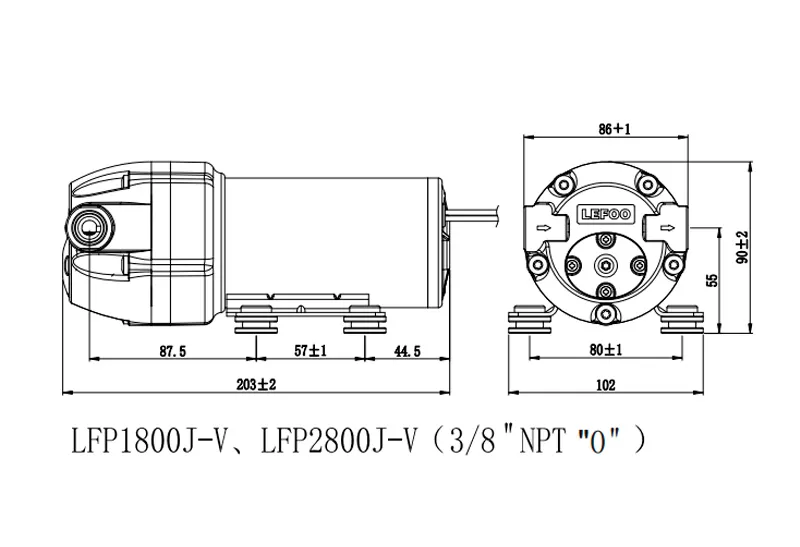

| Model | LFP1600W-A | LFP1800J | LFP1800J-V | LFP2600W-A | LFP2800J | LFP2800J-V | LFP2800J-FD |
| Voltage | 24V DC | 36V DC | |||||
| Inlet Water Pressure | 0.2MPa | 0.2MPa | |||||
| Working Pressure | 0.7MPa | 0.7MPa | |||||
| Working Current | ≤4.5A | ≤3.8A | ≤2.6A | ≤2.6A | ≤2.7A | ||
| Working Flow Rate | ≥3500ml/min | ≥3500ml/min | ≥3500ml/min | ≥3500ml/min | |||
| Open Flow | ≥6000ml/min | ≥4500ml/min | ≥6000ml/min | ≥4500ml/min | |||
| Bypass Pressure | 0.85-1.05MPa | 0.9-1.2MPa | 1.0-1.2MPa | 0.8-1.05MPa | 0.9-1.2MPa | 1.0-1.2MPa | 0.9-1.1MPa |
| Maximum Current | ≤5.0A | ≤4.5A | ≤4.7A | ≤3.2A | ≤3.2A | ≤3.3A | ≤3.3A |
