① Self-priming type
| Model | Voltage | Inlet Water Pressure | Working Pressure | Working Current | Working Flow Rate | Open Flow | Bypass Pressure | Maximum Current | Self-priming Height |

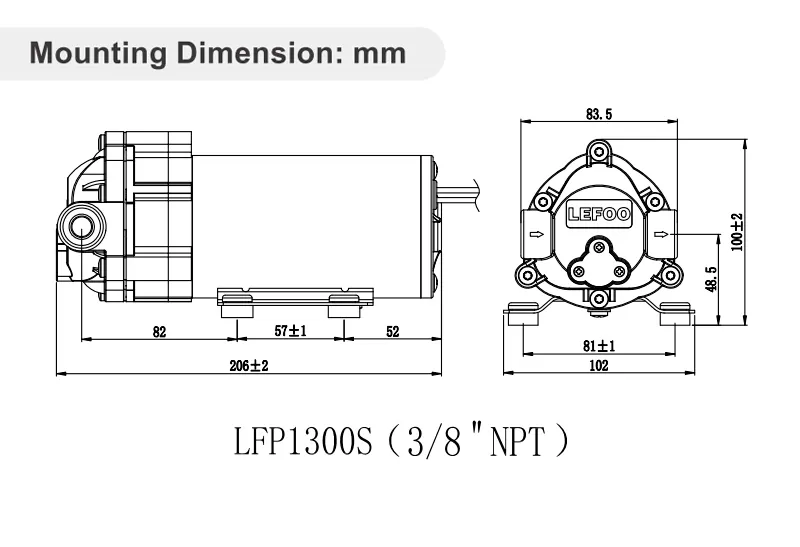

| LFP1300S | 24V DC | 0MPa | 0.5MPa | ≤3.5A | ≥2600mL/min | ≥3200mL/min | 0.8-1.0MPa | ≤4.5A | ≥3.0m |
② Normal type
| Model | Voltage | Inlet Water Pressure | Working Pressure | Working Current | Working Flow Rate | Open Flow | Bypass Pressure | Maximum Current | Self-priming Height |

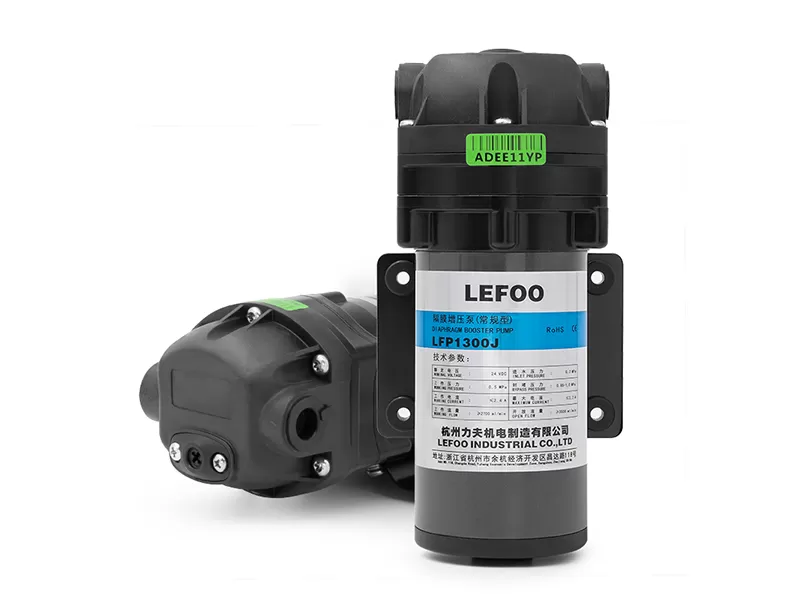

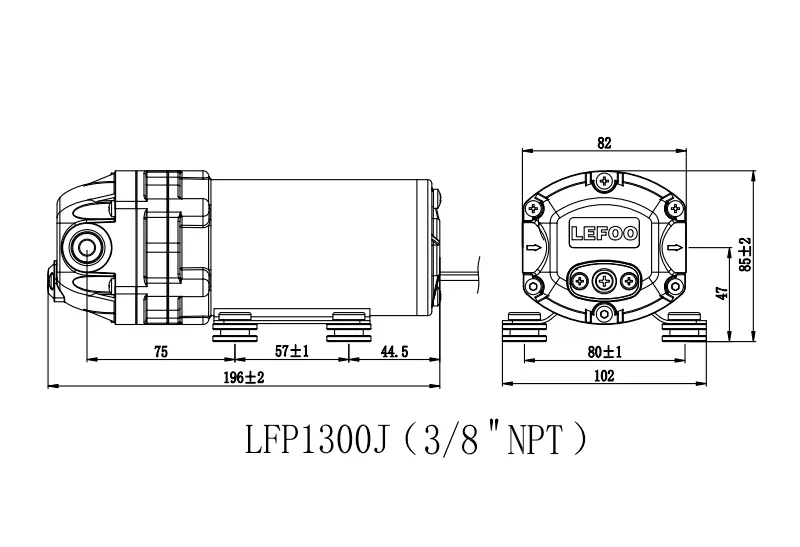

| LFP1300J | 24V DC | 0.2MPa | 0.5MPa | ≤2.3A | ≥2700mL/min | ≥4000mL/min | 0.85-1.05MPa | ≤3.2A |  / |

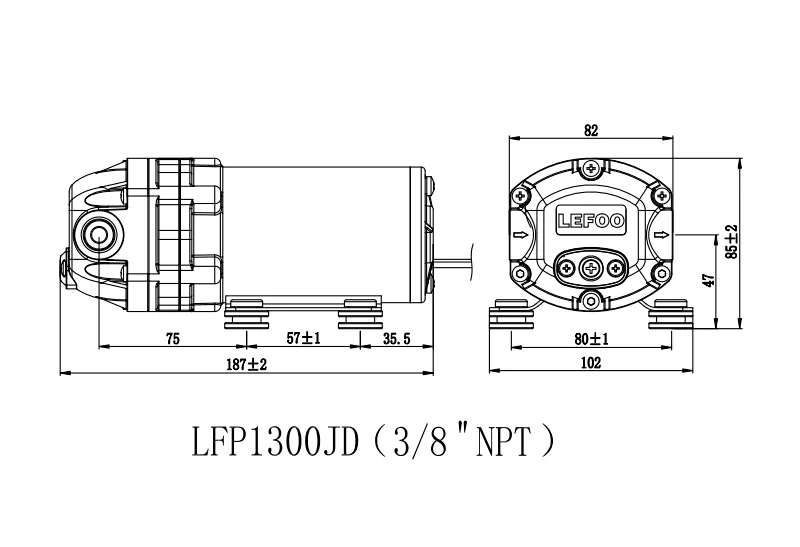

| LFP1300JD | |||||||||

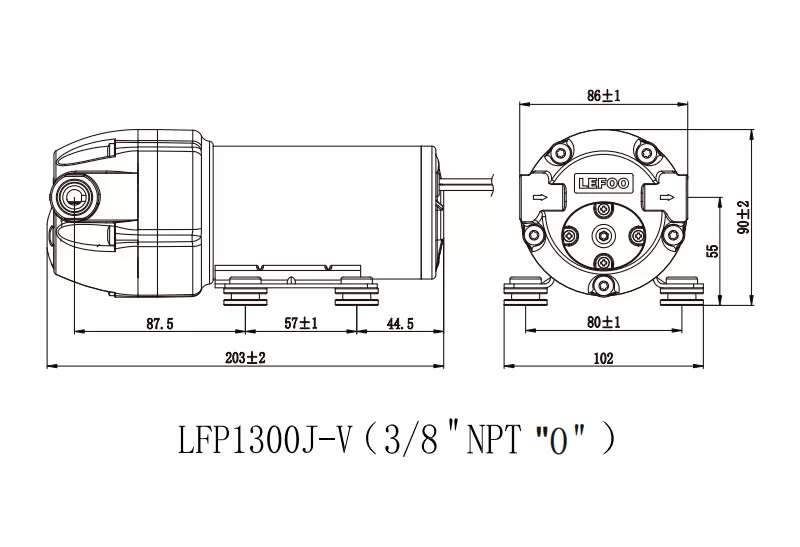

| LFP1300J-V | ≥3500mL/min | 0.9-1.1MPa | |||||||

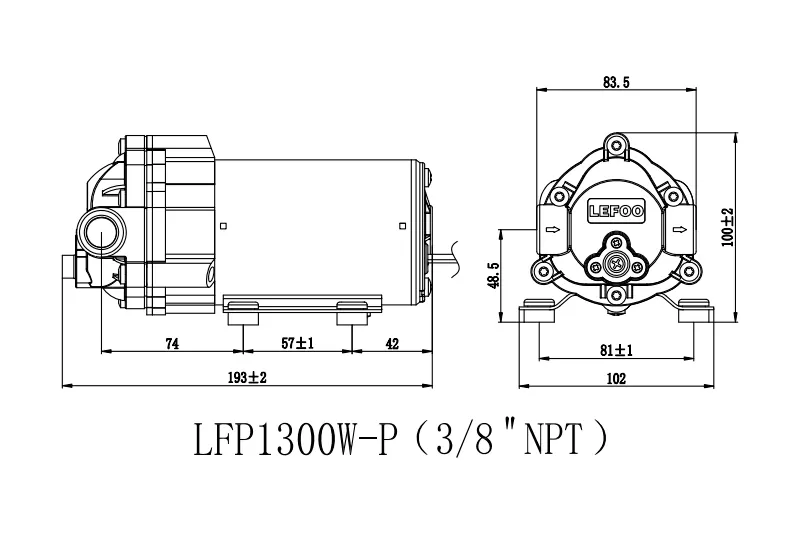

| LFP1300W-P | ≤2.4A | 0.85-1.0MPa | |||||||

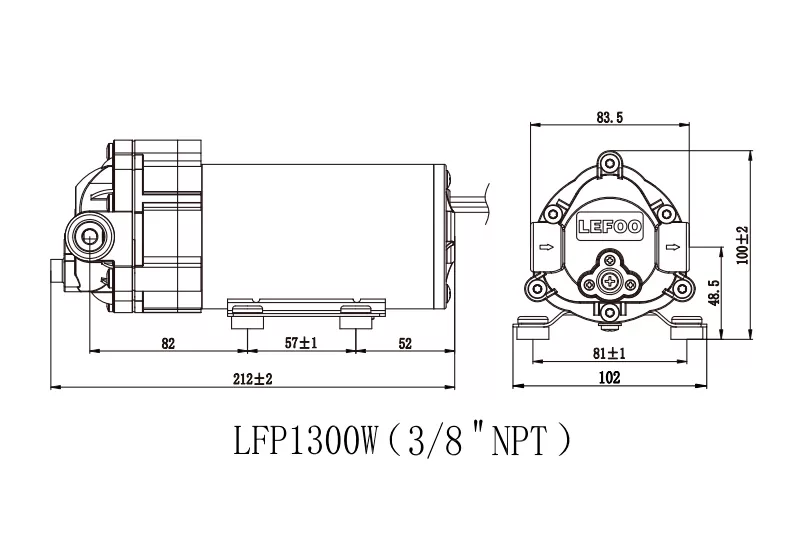

| LFP1300W |
