① Self-priming type
| Model | Voltage | Inlet Water Pressure | Working Pressure | Working Current | Working Flow Rate | Open Flow | Bypass Pressure | Maximum Current | Self-priming Height |
| LFP1200S | 24V DC | 0MPa | 0.5MPa | ≤2.5A | ≥1800mL/min | ≥2400mL/min | 0.8-1.0MPa | ≤3.3A | ≥3.0m |
② Normal type
| Model | Voltage | Inlet Water Pressure | Working Pressure | Working Current | Working Flow Rate | Open Flow | Bypass Pressure | Maximum Current | Self-priming Height |

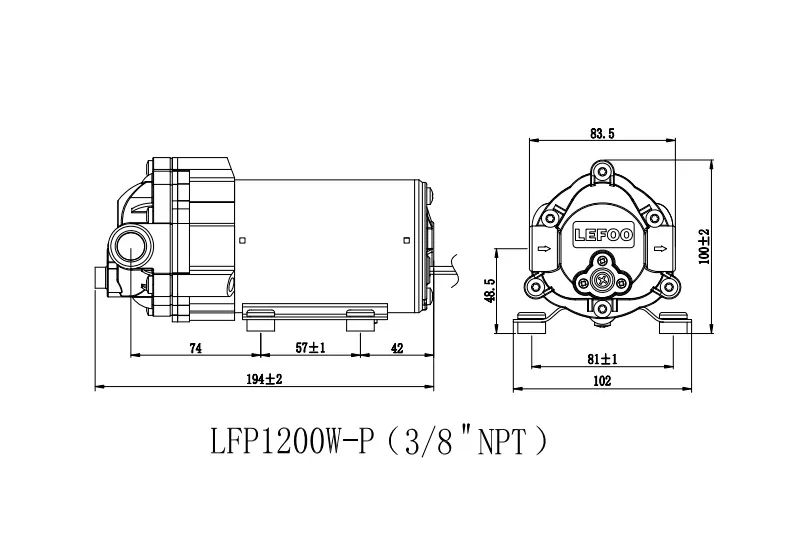

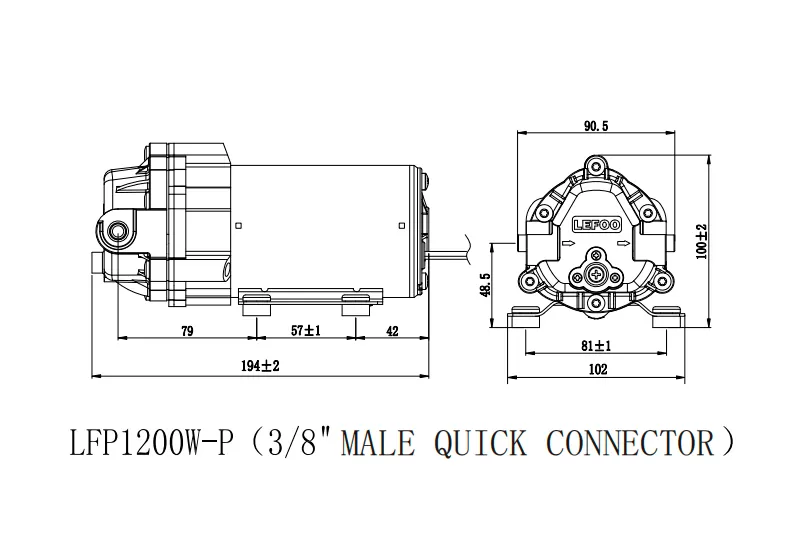

| LFP1200W-P | 24V DC | 0.2MPa | 0.5MPa | ≤1.9A | ≥1900mL/min |  ≥2500mL/min | 0.85-1.0MPa | ≤2.5A | / |

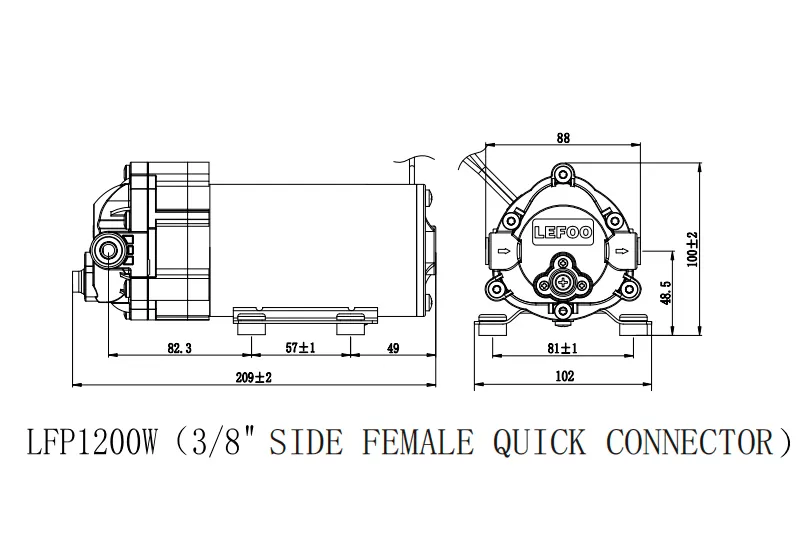

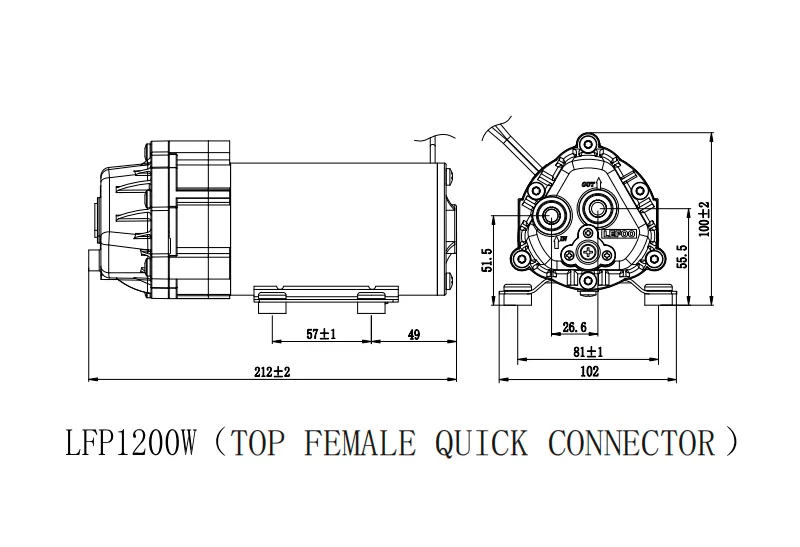

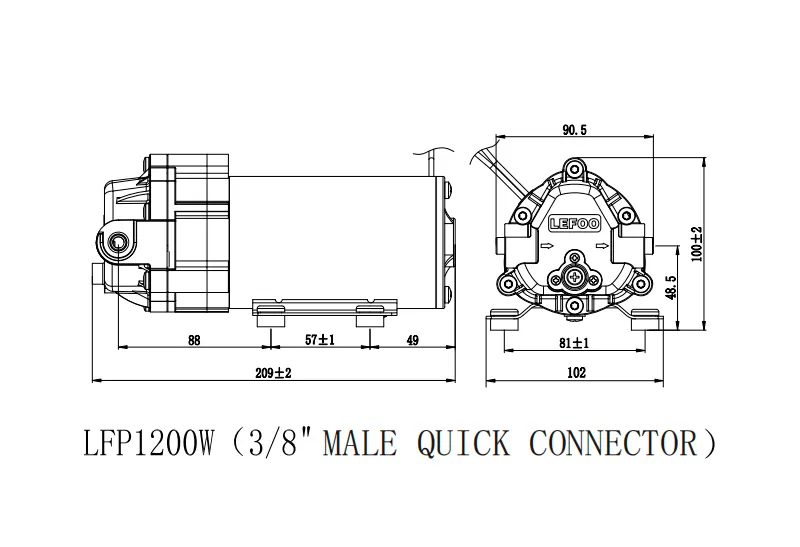

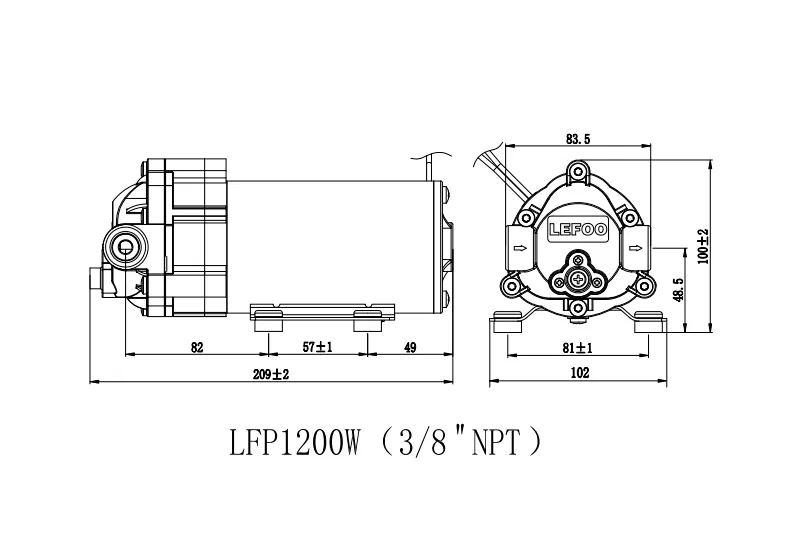

| LFP1200W |
