① Self-priming type
| Model | Voltage | Inlet Water Pressure | Working Pressure | Working Current | Working Flow Rate | Open Flow | Bypass Pressure | Maximum Current |  Self-priming Height |

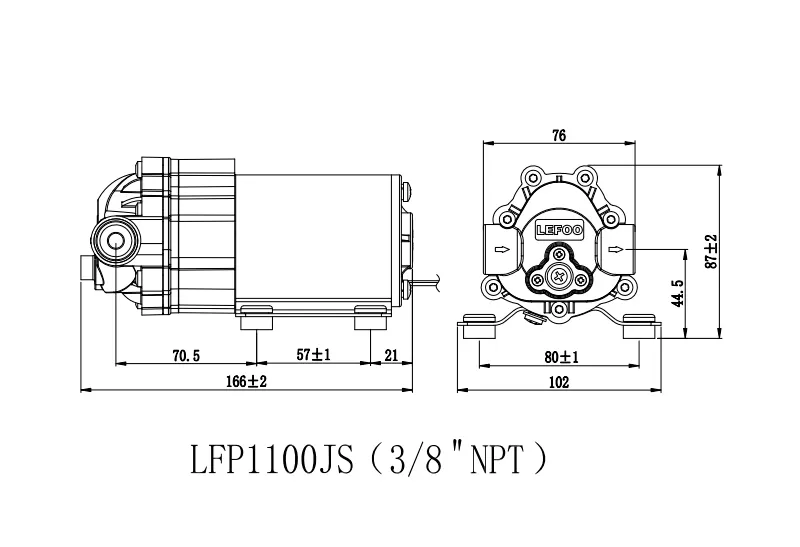

| LFP1100JS | 24V DC | 0MPa | 0.5MPa | ≤1.6A | ≥1050mL/min | ≥1400mL/min | 0.8-1.0MPa | ≤2.1A | ≥3.0m |

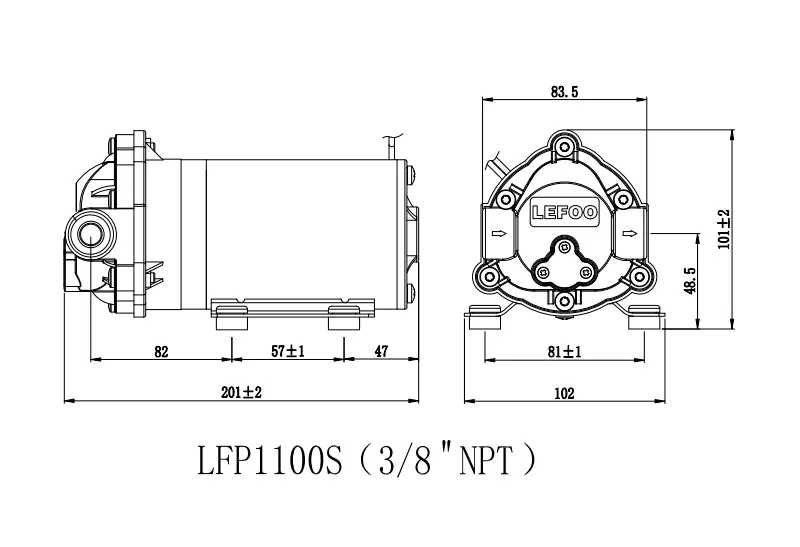

| LFP1100S |
② Normal type
| Model | Voltage | Inlet Water Pressure | Working Pressure | Working Current | Working Flow Rate | Open Flow | Bypass Pressure | Maximum Current | Self-priming Height |

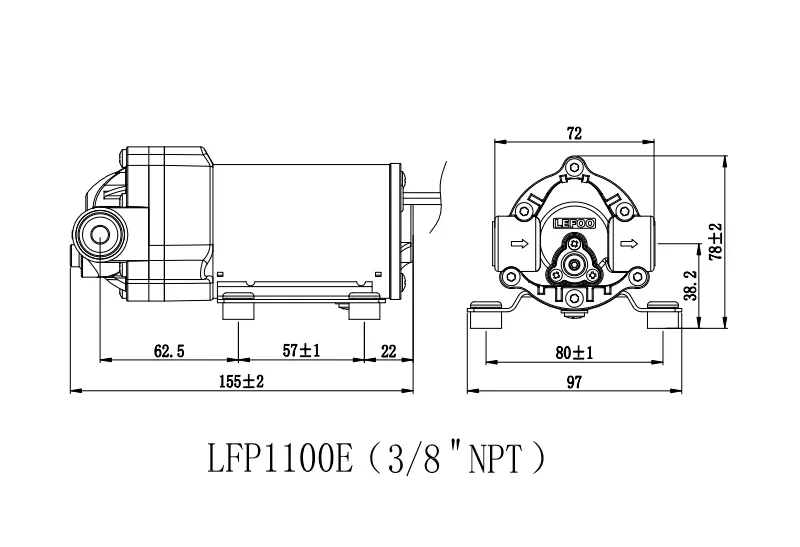

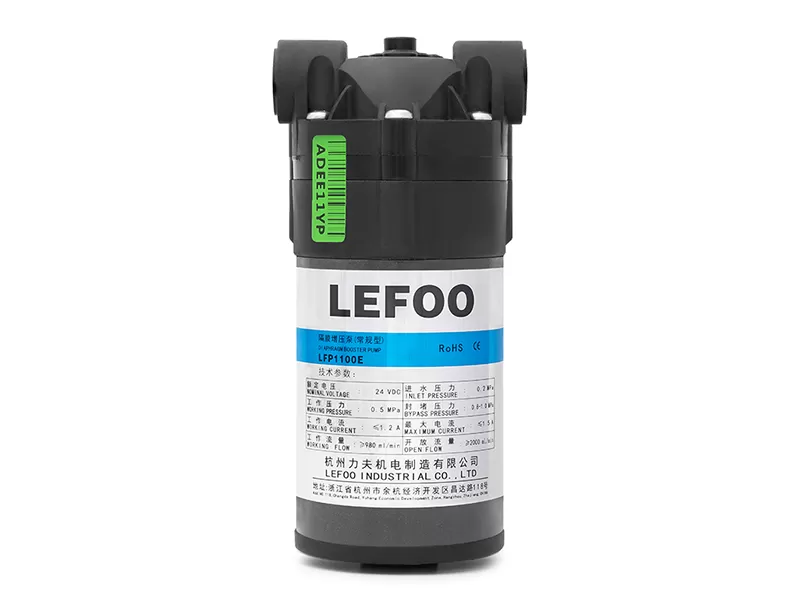

| LFP1100E | 24V DC | 0.2MPa | 0.5MPa | ≤1.2A | ≥980mL/min | ≥2000mL/min | 0.8-1.0MPa | ≤1.5A | / |
| LFP1100J | ≥2200mL/min | ≤1.4A | |||||||

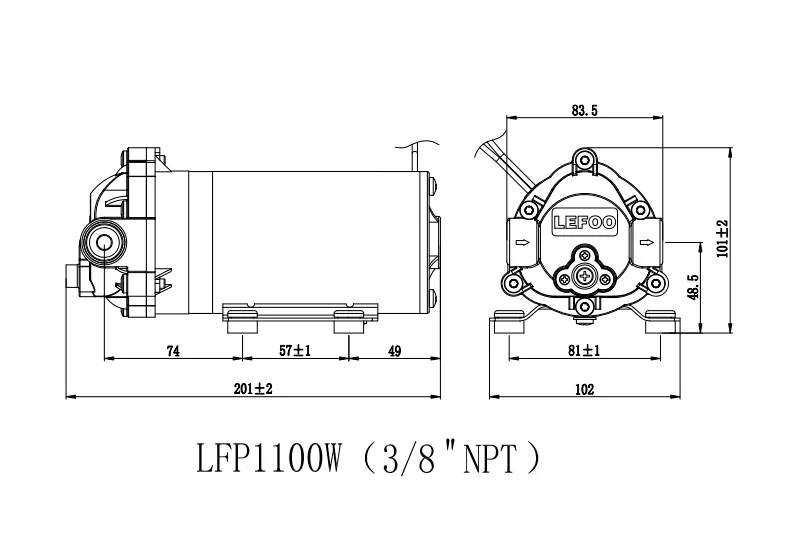

| LFP1100W | ≥2000mL/min | 0.85-1.0MPa | |||||||

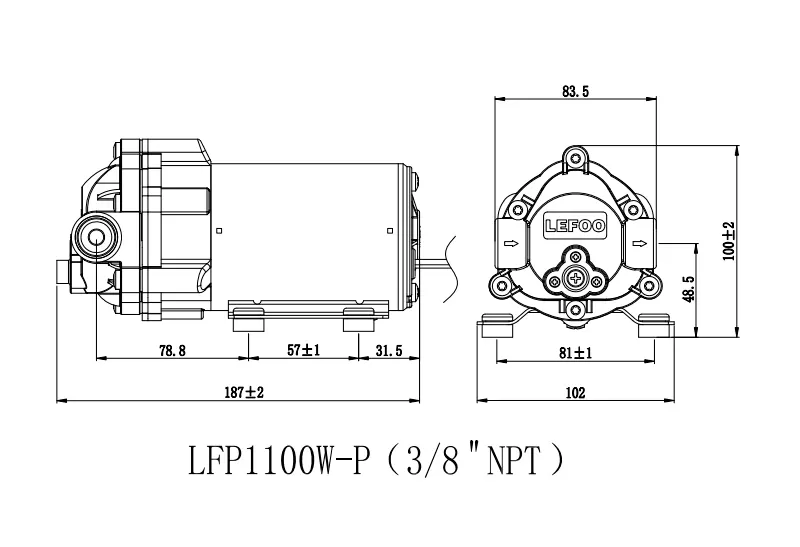

| LFP1100W-P | ≤1.3A | ≥1800mL/min | ≤1.8A |
