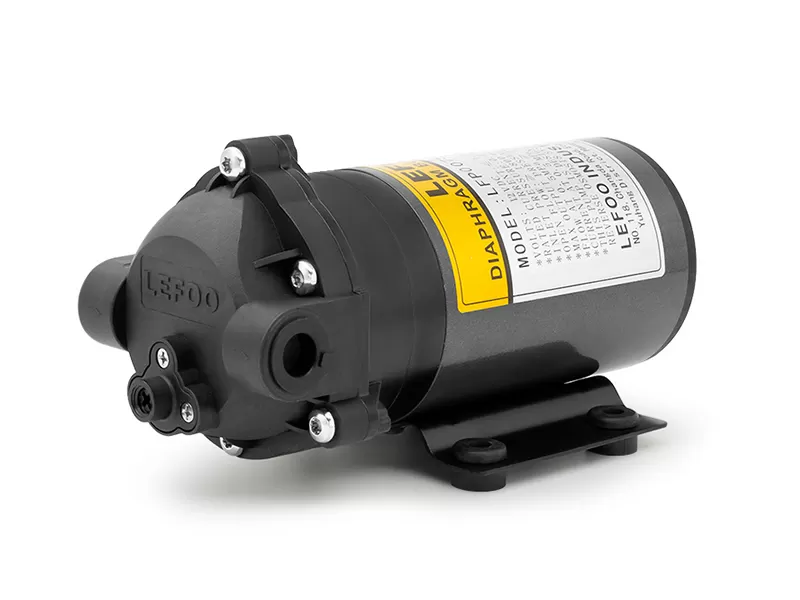

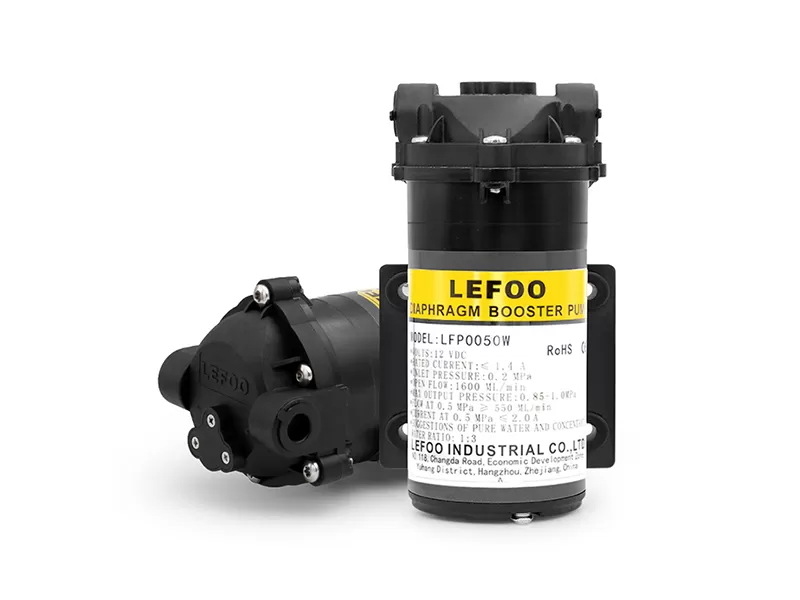

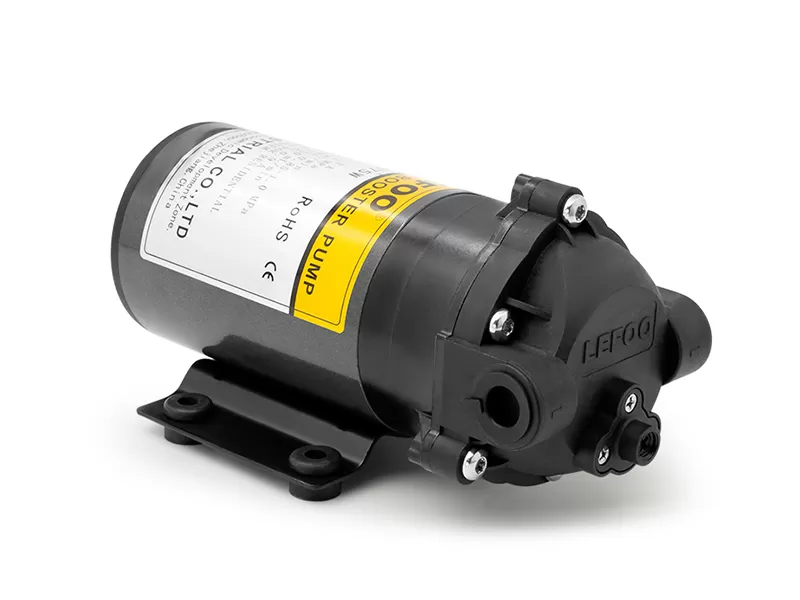

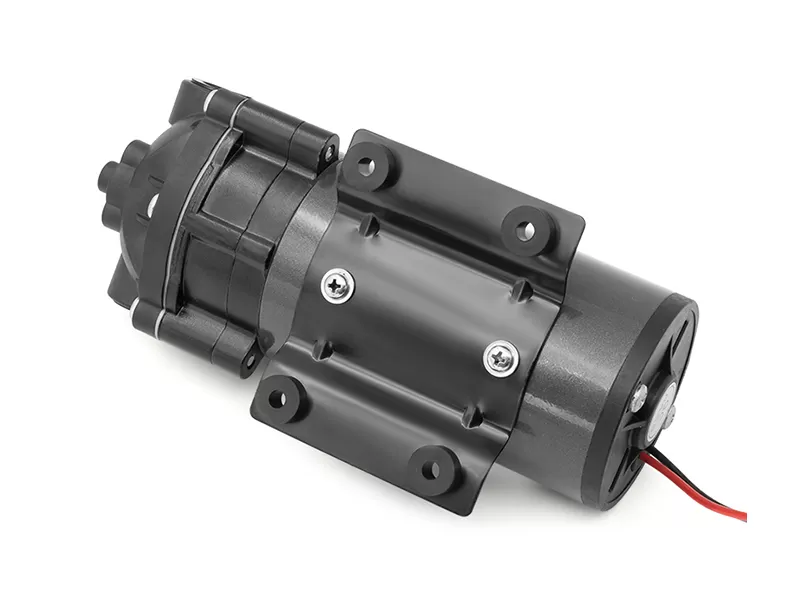

The small diaphragm booster pump (LFP0050W) is specifically designed for home water purification systems, providing consistent water pressure and reliable performance. With a compact structure, it features low noise, strong self-priming ability, and corrosion-resistant materials. The pump supports both vertical and horizontal installation, ensuring flexibility in tight spaces. Energy-efficient and long-lasting, it is ideal for enhancing filtration performance in RO systems.
Stable and efficient pressure output
Low noise operation
Strong self-priming capability
Corrosion-resistant and durable
Compact design for flexible installation
Energy-saving and environmentally compliant (CE/RoHS certified)
| Model | LFP0050W |
| Voltage | 12VDC |
| Inlet Water Pressure | 0.2MPa |
| Working Pressure | 0.5MPa |
| Working Current | ≤1.4A |
| Working Flow Rate | ≥600mL/min |
| Open Flow | ≥1600mL/min |
| Bypass Pressure | 0.8-1.0MPa |
| Maximum Current | ≤2.0A |
