| Pump Tube Performance Parameters | |||||

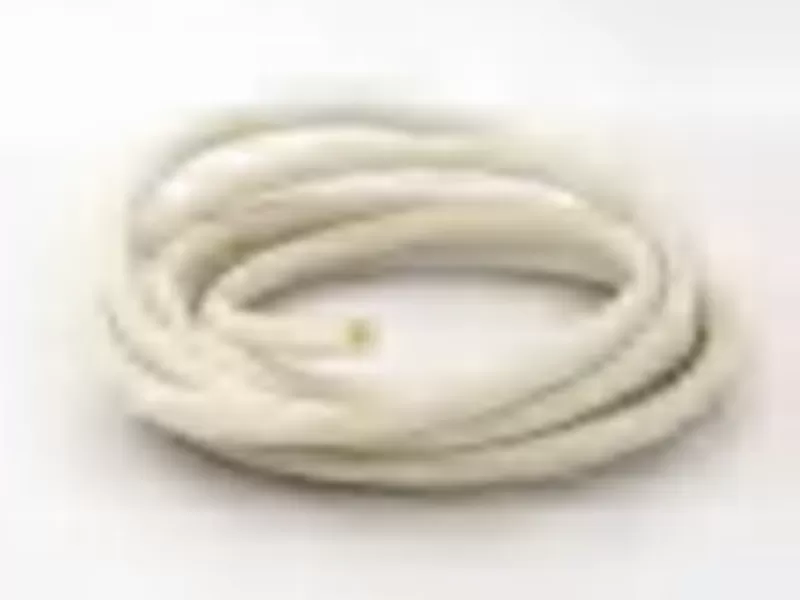

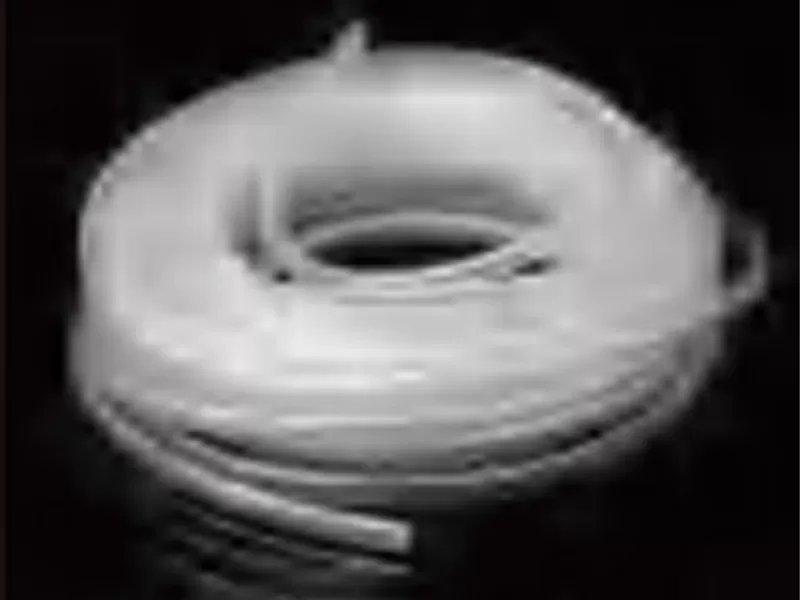

| Pictures |  |  |  |  |  |
| Tube Material | Platinum-cured silicone tube | BPT tube | A-60-F tube | A-60-G tube | Viton Fluorine tube |
| Hardness | Shore 50A-60A | Shore 55A-70A | Shore 55A-70A | Shore 55A-70A | Shore 55A-65A |
| Temperature resistance | -60℃~200℃ | -50℃~135℃ | -60℃~140℃ | -60℃~140℃ | -30℃~200℃ |
| Tube Material | Can be sterilized by ethylene oxide, high-temperature and high-pressure, or gamma ray | Can be repeatedly sterilized by high temperature and high pressure | |||
| Peristaltic pump extrusion life | ≥200hours | ≥1000hours | ≥500hours | ||
| Certifications | Food-grade SGS, Medical-grade FDA, USP Class VI, RoHS, NSF, REACH | FDA, REACH, NSF, RoHS, USP ClassVI | NSF, REACH, RoHS, FDA | REACH, RoHS | FDA, REACH, RoHS |
| Features | Food and pharmaceutical grade, highly transparent, non-toxic and odorless, resistant to ultraviolet, ozone, and most chemicals, with low surface friction, low extraction, and high resilience | Excellent acid, alkali and oxidation resistance, good flexibility, easy to clean and disinfect, suitable for opaque and light-sensitive fluids | Resistant to ozone and ultraviolet, good oxidation resistance for various food and detergent, can be used in high-temperature environments | Excellent acid and alkali resistance, abrasion-resistant, good bending fatigue resistance, better gas tightness than silicone rubber tubes | Strong corrosion resistance, food-contact safety, black color blocks UV, low gas permeability |
| Typical Applications | Peristaltic pump tubes/GMP pharmceutial manufacturing, vaccine reagent filling, medical treatment, biotechnology, fine chemicals, environmental protection, food processing, laboratories, coating printing, industrial production, daily-use applications | Peristaltic pump tubes/Sensitive cell culture, fermentation synthesis, separation, purification, laboratory, medical treatment, pharmaceutical manufacturing, food industry, etc | Peristaltic pump tubes/Connecting tubes, can be used for a long time in industrial applications with chemical cleanng agents | Peristaltic pumps, medical equipment, gas transmission pipelines, laboratories, 3D printers, semiconductor industry, chemical engineering, dyeing indutry | |
Tube Size Table | ||||
Tube Section Schematic Dagram (Scale 1:1) | Tube Number | Inner Diameter(mm) | Outer Diameter(mm) | Wall Thickness(mm) |
| 0.5*1.5 | 0.5 | 1.5 | 0.5 |
| 1*2 | 1 | 2 | |
| 1.5*2.5 | 1.5 | 2.5 | |
| 1*3 | 1 | 3 | 1.0 |
| 2*4 | 2 | 4 | |
| 3*5 | 3 | 5 | |
| 4*6 | 4 | 6 | |
| 14# | 1.6 | 4.8 | 1.6 |
| 19# | 2.4 | 5.6 | |
| 16# | 3.2 | 6.4 | |
| 25# | 4.8 | 8 | |
| 17# | 6.4 | 9.6 | |
| 18# | 7.9 | 11.1 | |
| 24# | 6.4 | 11.2 | 2.4 |
| 35# | 7.9 | 12.7 | |
 | 36# | 9.6 | 14.4 | |
