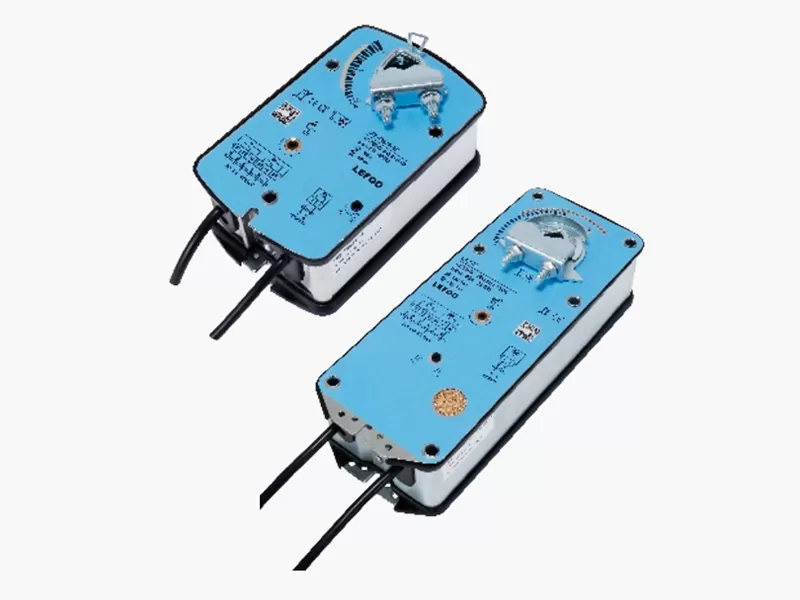

LFZ-T05 Series Electric Damper Actuators adopt imported DC motor/brushless motor to provide power with torques of 5NM. It is widely used in building ventilation fields, which can realize mechanical reset when power off and electric start, providing more than 30000 times of repeated action.
| General | Value | |
| Electric Parameter | Rated Voltage | AC24V 50/60Hz DC24V /AC100...240V 50/60Hz |
| Rated Voltage Range | AC/DC19.2...28.8V /AC85..265V | |
| Power Consumption | Run Status Standby Status | |
| Cable size | 0.5mm² | |
| Auxiliary switch rating | 3A, AC230V | |
| Function Parameter | Torque | 5NM |
| Suitable damper size | Under nomal wind resistance, 1NM matches 0.1 sauare meter (Include airtight valve matching scheme) | |
| Rotating Direction | Manual Adjustment Available | |
| Manual Operation | Available in all series | |
| Rotation Angle | Max 95°. Full stroke can be adjusted by mechanical limit | |
| Run Time | adjustable within the parameter range | |
| Noise Level | Motor running46db, spring reset 62db | |
| Position indication | Mechanical indication | |
| Work Environment | Electrical Grade | lll(Safelow voltage) ll(Double insulation) |
| Degree of Protection | IP54 | |
| Working lemperature | -20..+50°C/IEC 721-3-3 | |
| Storage lemperature | -30..+80°C/IEC 721-3v-2 | |
| Temperature lest | 95%RH, No Condensation/EN 60730-1 | |

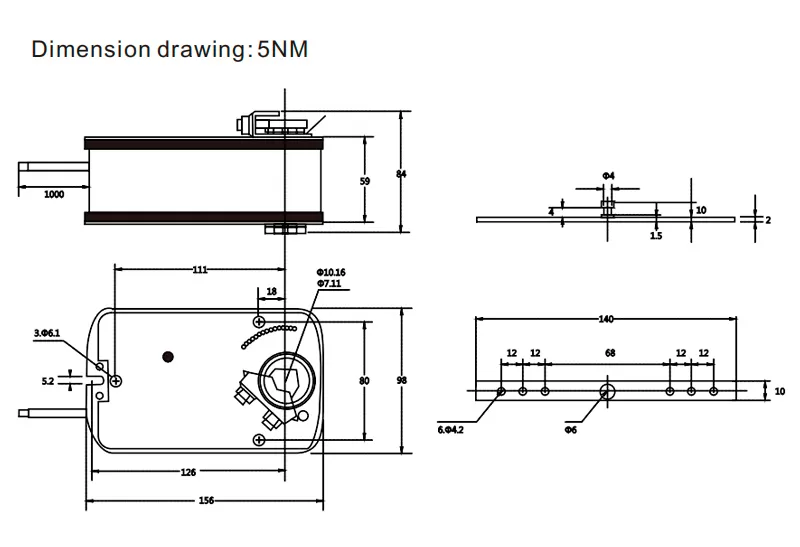

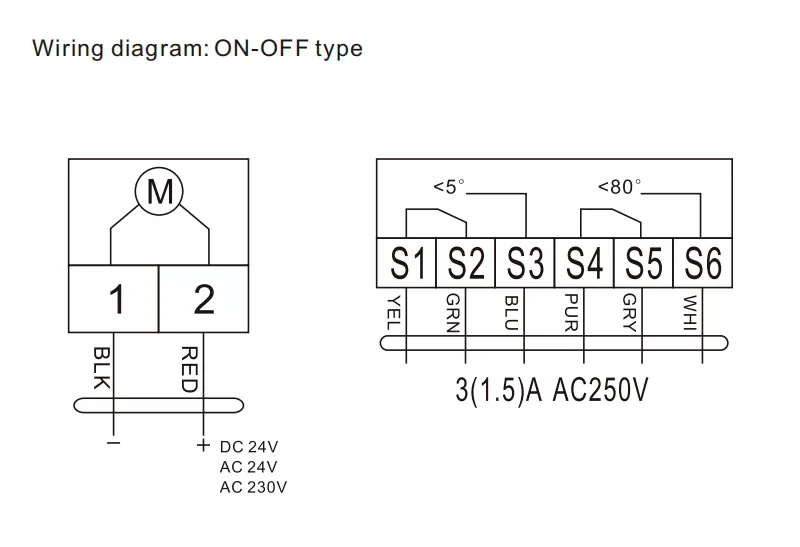

| Dimension Drawing | Dimension | See Dimension drawing |
| Length of Shaft | >50mm | |
| Size of Shaft | 10-20 Round Shaft 10x10..16x16 Round Shaft | |
| Weight | <1.8kg | |
| Model | Output Torque | Power Supply | Run Time | Control Signal | F Auxiliary Switch |
| LFZ-T0524-K/T1024-K/T1524-K | 5N/10N/15N | 24V | Motor run time 70S; Spring reset time<20s | ON-OFF control | / |
| LFZ-T0524-KF/T1024-KF/T1524-KF | 5N/10N/15N | 24V | Motor run time 70S; Spring reset time<20s | ON-OFF control | Two sets of auxiliary switches |
| LFZ-T05230-K/T10230-K/T15230-K | 5N/10N/15N | 230V | Motor run time 70S; Spring reset time<20s | ON-OFF control | / |
| LFZ-T05230-KF/T10230-KF/T15230-KF | 5N/10N/15N | 230V | Motor run time 70S; Spring reset time<20s | ON-OFF control | Two sets of auxiliary switches |
