LFZ-Q05/08/16/24/40 Series Electric Damper Actuators adopt imported DC motor/brushless motor to provide power, with torques of 5NM, 8NM, 16NM, 24NM, 40NM for choosing. The series are widely used in railtransit, ventilation system, laboratory and other fields which need fast control. They are easy to install and fx on square shaft, circular shaft or other shapes of damper connecting shafts. They have long service life, low noise and can achieve multi-function intelligent control. The whole series are with manual operation function and manual limit, IP54 protection grade, full overload protection function to ensure safe use.
General | Value | |||||
Electrical parameters | Rated Voltage | AC24V 50/60Hz DC24V/AC100...240V 50/60Hz | ||||
Rated Voltage Range | AC/DC 19...28.8V/AC85V...AC265V | |||||
Power Consumption | Running Status 4.5W, Standby Status 0.5W | |||||
Cable Size | 0.5mm² | |||||
Terminal Size | Max2mm² | |||||
Function parameter | Torque | 5Nm | 8Nm | 16Nm | 40Nm | 48Nm |
Suitable damper Size | 0.5m² | 1.2m² | 2.5m² | 1.2m² | 4.2m² | |
Rotation direction | Can be selected by DIP switch | |||||
Manual adjustment | Actuator can be manually adjusted after pressing the gear set disengagement button | |||||
Nomina/Maximum Comer | 90°/95° | |||||
Noise level | 46dBA(within 1 meter) | |||||
Location indication | Rotation angle provided by position indicator | |||||
Work Environment | Electrical Grade | Ⅲ(SELV) Ⅱ(Double Insulation) | ||||
Degree of Protection | Ip54 | |||||
Working Temperature | -20℃~+50℃ | |||||
Storage Temperature | -30℃~+80℃ | |||||
Temperature Test | 95%RH, No Condensation/EN 60730-1 | |||||

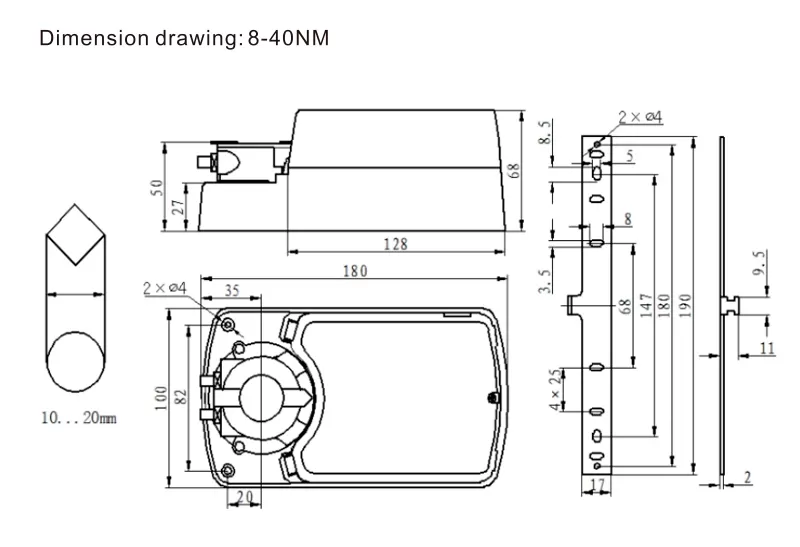

Dimension Drawing | L×W×H/mm | See dimensional details | ||||
Minimum shaft length | >50mm | |||||
Weight | <1.3 Kg | |||||
Model | Output Torque | Power Supply | Run Time | Control Signal | F Auxiliary Switch |
LFZ-Q0524/230-K/KF | 5N | 24V/230V | 3.5S | On-off Control | Two sets of auxiliary switches |
LFZ-Q0524/230-M/MF | 5N | 24V/230V | 3.5S | 0(2)~10V/0(4)~20mA | Two sets of auxiliary switches |
LFZ-Q0824/230-K/KF | 8N | 24V/230V | 8S | On-off Control | Two sets of auxiliary switches |
LFZ-Q0824/230-M/MF | 8N | 24V/230V | 85 | 0(2)~10V/0(4)~20mA | Two sets of auxiliary switches |
LFZ-Q1624/230-K/KF | 16N | 24V/230V | 16S | On-off Control | Two sets of auxiliary switches |
LFZ-Q1624/230-M/MF | 16N | 24V/230V | 16S | 0(2)~10V/0(4)~20mA | Two sets of auxiliary switches |
LFZ-Q2424/230-K/KF | 24N | 24V/230V | <30S | On-off Control | Two sets of auxiliary switches |
LFZ-Q2424/230-M/MF | 24N | 24V/230V | <30S | 0(2)~10V/0(4)~20mA | Two sets of auxiliary switches |
LFZ-Q4024/230-K/KF | 40N | 24V/230V | <30S | On-off Control | Two sets of auxiliary switches |
LFZ-Q4024/230-M/MF | 40N | 24V/230V | <30S | 0(2)~10V/0(4)~20mA | Two sets of auxiliary switches |
Ordering information -KF/MF is series with auxiliary switch, please provide complete
