Compact structure, small size and complete functions.
Suitable for driving Type 57 stepper motors. Can be fixedly installed at the tail of Type 57 stepper motors to form an integrated product, or it can be used independently.
Can be matched with two-phase 4-6-and 8-wire stepper motors.
The subdivision and rated current can be changed according to requirements.
Three types of drivers with different functions for users to choose from: 57 pulse type, 57 communication type and 57 voltage type available.

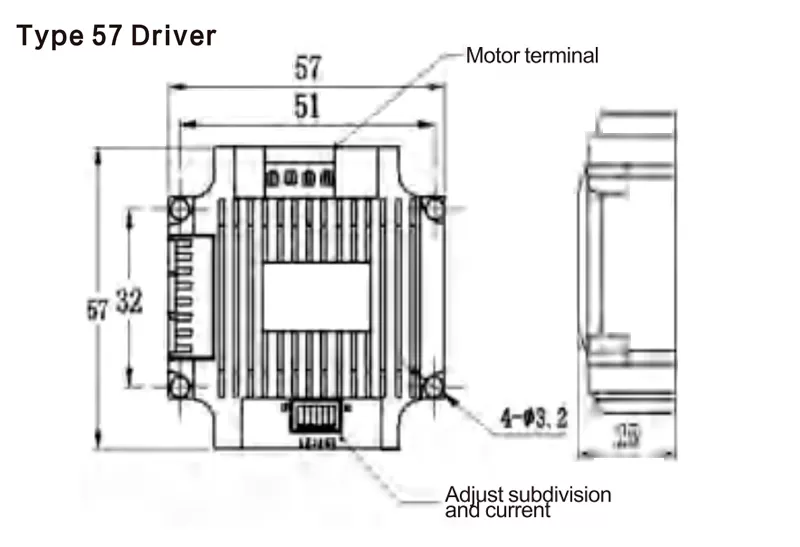

SPECIFICATIONS | |||
Product Model | 57 Pulse Type | 57 Communication Type | 57 Voltage Type |
Function | Start and stop, Positive and negative rotation, PWM pulse signal speed regulation | MODBUS data control for start and stop, positive and negative rotation rotation, speed regulation | Start and stop, Positive and negative rotation, speed regulation (external voltage control) |
Compatible Motor | 57-type Stepper Motor | ||
Speed Regulation Range | 0-500RPM | ||
Weight | 60g | ||
Voltage | DC24V | ||
Power | ≤30W | ||
Working Environment | Temperature is usually within 60℃, and the motor operating temperature is within 80℃ | ||

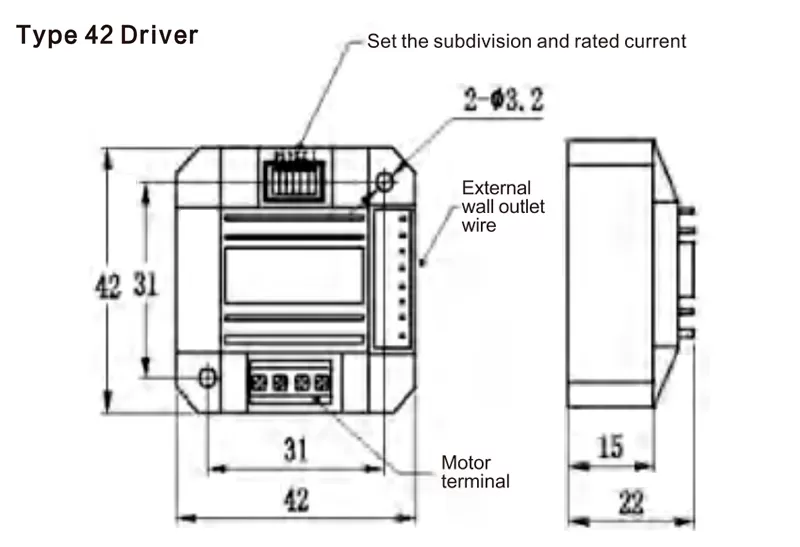

SPECIFICATIONS | |||
Product Model | 42 Pulse Type | 42 Communication Type | 42 Voltage Type |
Function | Start and stop, Positive and negative rotation, PWM pulse signal speed regulation | MODBUS data control for start and stop, positive and negative rotation rotation, speed regulation | Start and stop, Positve and negative rotation, speed reguation (external voltage control) |
Compatible Motor | 42-type Stepper Motor | ||
Speed Regulation Range | 0-500RPM | ||
Weight | 34g | ||
Voltage | DC24V | ||
Power | ≤15W | ||
Working Environment | Temperature is usually within 60℃, and the motor operating temperature is within 80℃ | ||
