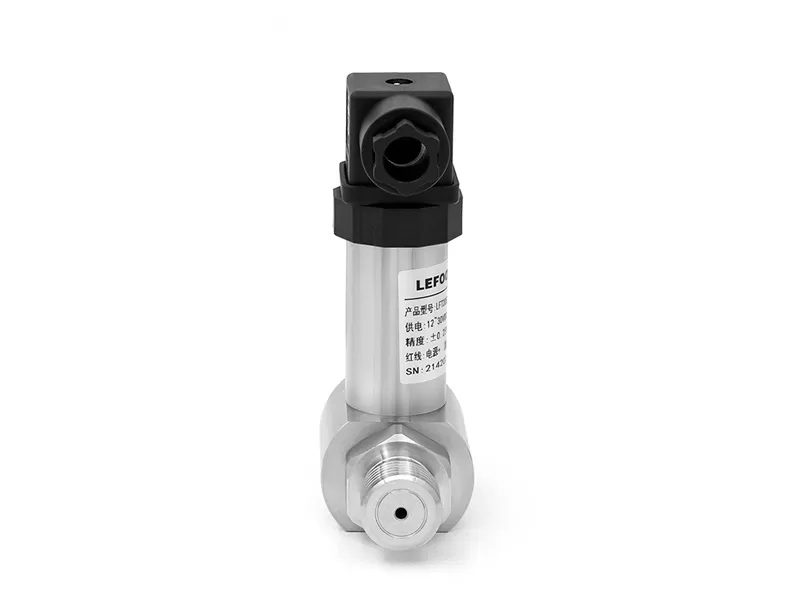

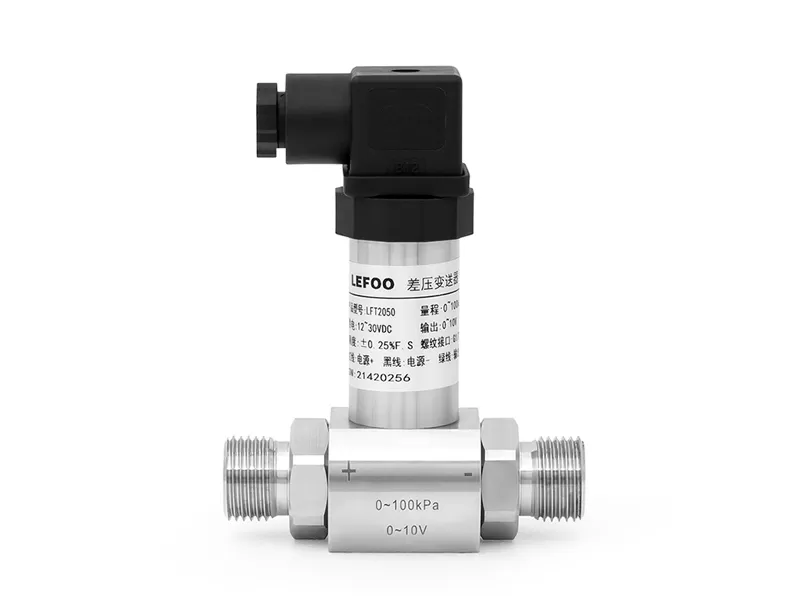

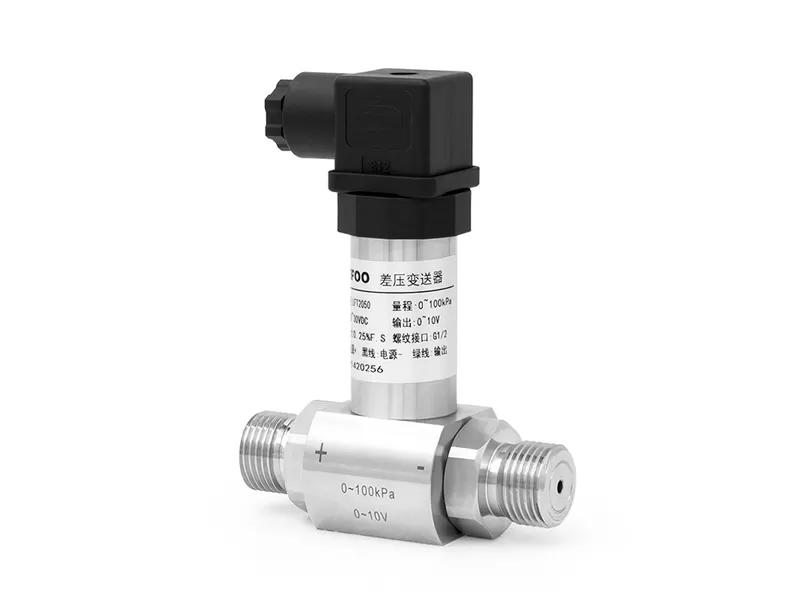

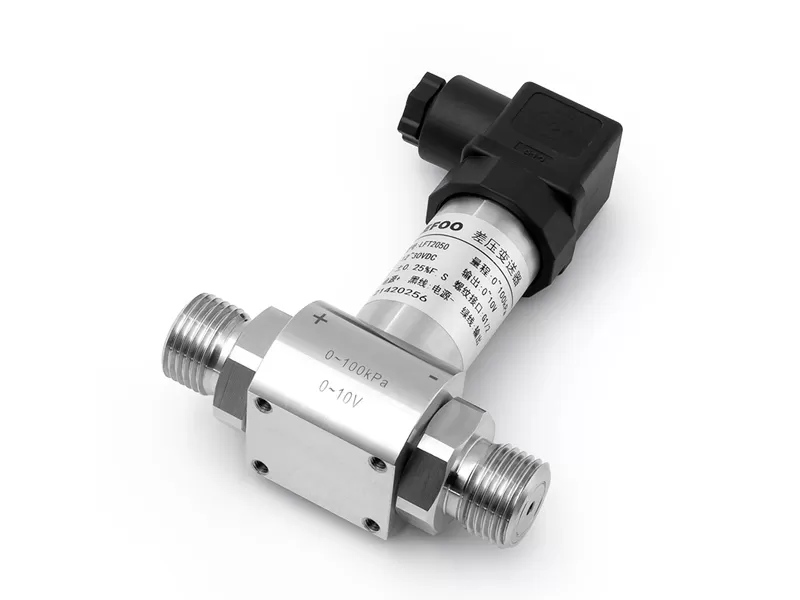

LFT2050 differential pressure transmitter adopt silicon piezoresistive differential pressure sensor as the core component, output standard industrial signals through temperature compensation, digital circuit correction and signal conditioning. The shell adopts an all-stainless steel structure with strong corrosion resistance. The product has the features of advanced design, perfect technology, sophisticated equipment, stable and reliable, and is widely applied in industrial process control, flow measurement, medical instruments, aerodynamic measurement, hydraulic, pneumatic equipment and other fields.
Compact size, easy to install
High stability and low drift
A variety of structures are optional
Can be applied in industrial occasion
Measurement Range | 0~10kPa…3.5MPa | ||
Overload Pressure | 1.5 times of the rated pressure | ||
Accuracy① | ±0.25%F.S(100kPa..3.5MPa) / ±0.5%F.S(0...100KPa) | ||
Stability | <0.5%F.S/year | ||
Working Temp | -10~60℃ | ||
Storage Temp | -40~100℃ | ||
Measured Medium | Gas or liquid compatible with 304 and 316L stainless steel, Fluorine rubber or Nitrile rubber | ||
Electrical Properties | 2-wired | 3-wired | 4-wired |
Output Signal | 4~20mA | 0~10V | RS485 |
Power Supply | 10~36VDC | 12~36VDC | 10~30VDC |
Electrical Connection | DIN43650A(Big Hirschmann), M12 waterproof outlet, GX12 aviation connector (three-core/four-core), M12 four-core aviation connector | ||
Pressure Connection | G1/4, NPT1/4, R1/4, G1/2, 7/16-20UNF, M20*1.5, M10*1, M14*1.5 etc. | ||
Pressure Form | D(Differential pressure) | ||
Enclosure Protection | IP65 | ||
Certification | EU electrical safety standards CE, RoHS | ||
① Measured at 25℃, including the comprehensive accuracy of linearity, repeatability and hysteresis.
