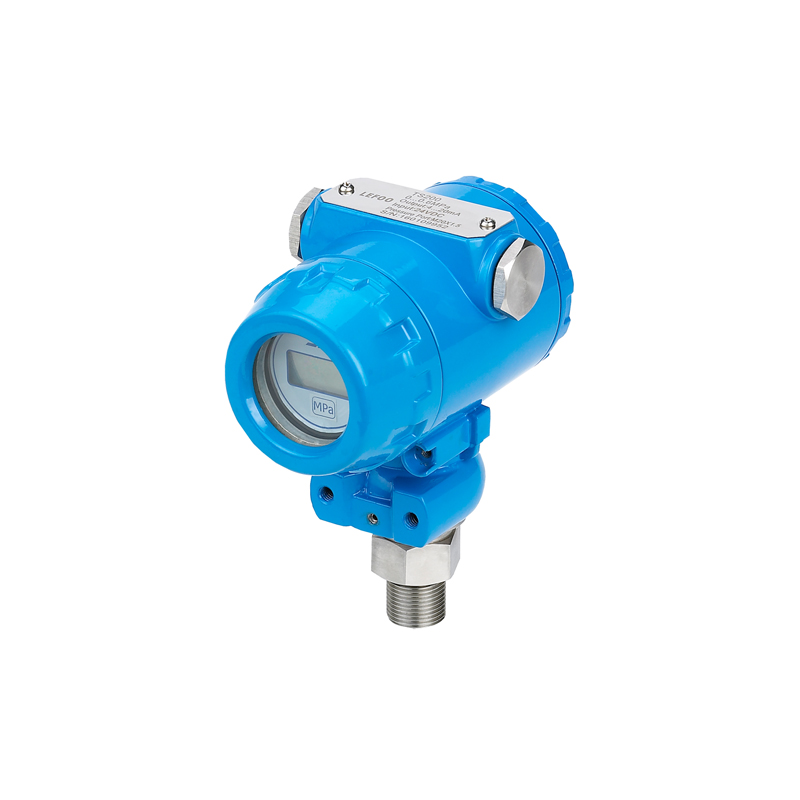

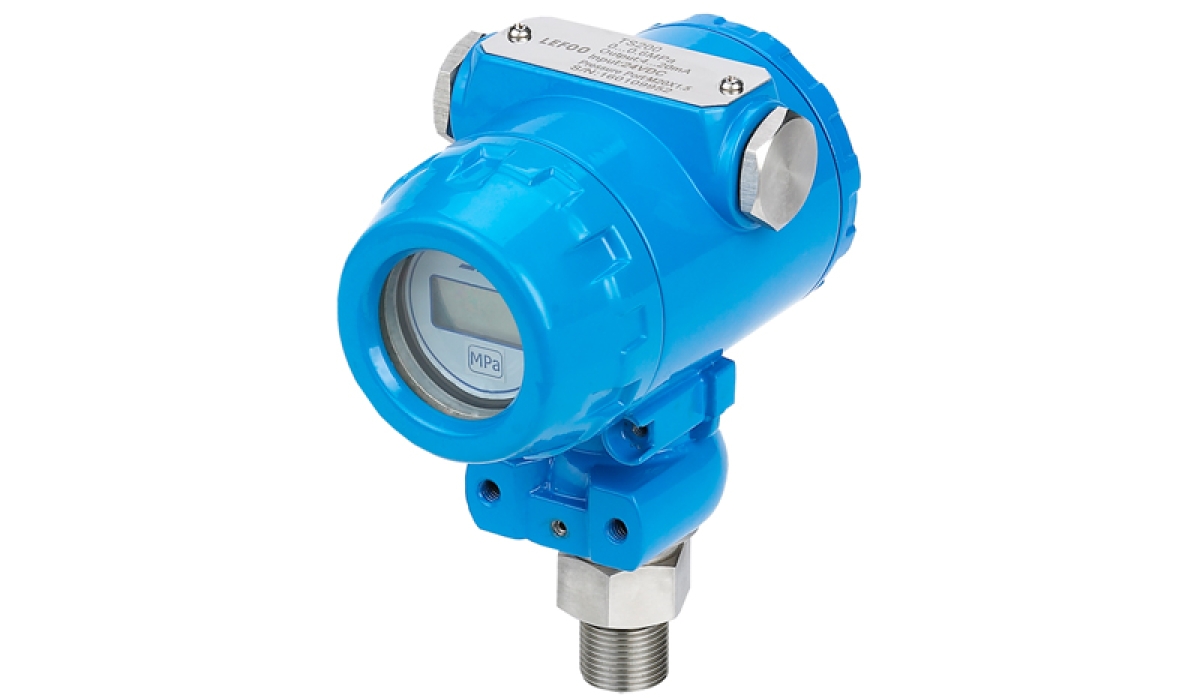

TS200 series pressure transmitter is safety explosion-proof and explosion-proof isolation type, with high quality and reasonable price. It’s widely used in testing pressure of gas and liquid, like water, oil and light corrosive liquid and gas. TS200 has stainless steel 1Cr18Ni9Ti pressure head, high precision pressure chip, appropriative V/I transformer. And it’s easy to calibrate zero to full range.
Features
0.5%F.S accuracy
With upper and lower limit alarm
Stress resistance buffer connector
A variety of pressure range and output signal
A variety of electrical connectors and pressure connections
Non-polar 2-wire output of current
Displayer is available
Safety explosion-proof, explosion-proof isolation and CE certificate
Application
Water supply with constant pressure
Compression natural gas
Four remotes system of tap water
Central air-conditioning
Automatic inspection system
The well real-time management
Pressure measure of pipe and tank
Heat supply of boiler
Specification
| MeasureRange | 0~0.2MPa......60MPa | ||
| Overload Pressure | 2times full scale | ||
| Broken Pressure | 3times full scale | ||
| Accuracy | ±0.5%F.S | ||
| Stability | Typical 0.25%F.S, Max 0.4%F.S | ||
| Operating Temprature | -40°C?~85°C? | ||
| Compensating Temprature | -10°C?~70°C? | ||
| Medium Compatibility | Corrosive medium compatible with stainless steel Cr18Ni9Ti,316L | ||
| Wires | Two-wire | Three-wire | |
| Signal Output | 4~20mA | 0/1~5Vdc | 0~10Vdc |
| Power Supply | 10~30Vdc | 8~30Vdc/ac | 11~30Vdc/ac |
| Load Resistance | (U-10)/0.02 | 100k | |
| Insulation | 100M@50V | ||
| Electric strength | 500V@60 second | ||
| Vibration/Impact | 10g/5~2000Hz, axes X/Y/Z20gsine 11ms | ||
| Elecrical connection | Water proof wirelead, enclosure IP65 | ||
| Pressure Connection | M20×1.5 / G1/2?R1/4 / NPT1/2 | ||
| Endurance | 2×106 pressure cycles @25 | ||
| Pressure Type | Gauge pressure G, Sealed gauge pressure | ||
| Response Time | 10 ms | ||
| DisplayRange | -9999~99999@ TS200 | ||
| Certificate | CE, Intrinsically safe E,Explosion-proof D | ||
| EMC | EMI: EN50081-1/-2 / EMS:EN50082-2 | ||
