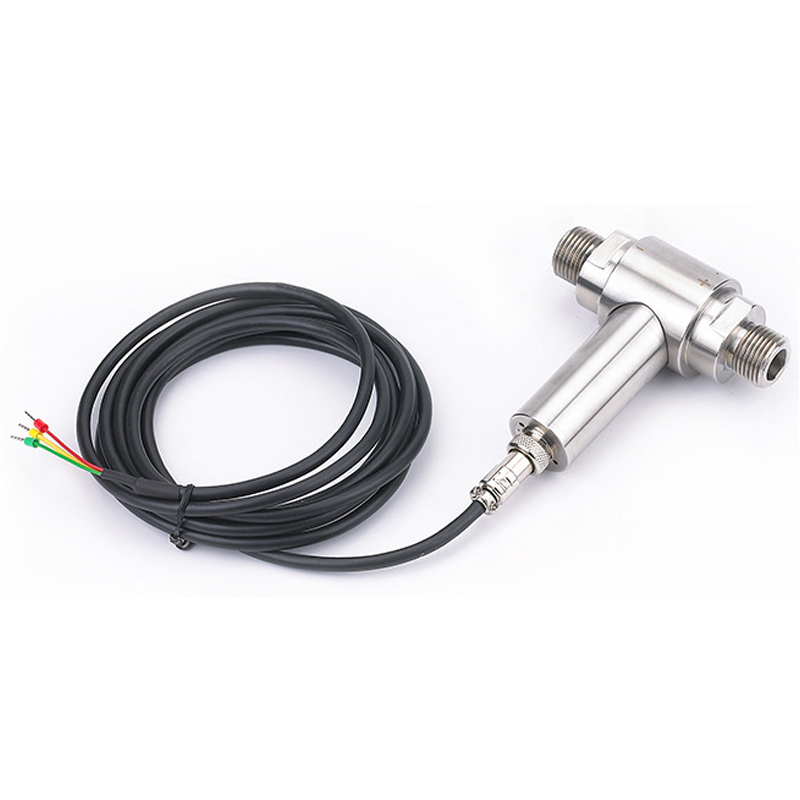

T1500 differential pressure transducer is characterized by anti-electromagnetic interference and lighting proof. It is widely used in liquid and water differential pressure test. Such as flow test.?Water swage treatment?mine download differential pressure test. Water heat of hydropower station city flood control and drainage, underwater engineering, underwater test, water saving irrigation, terminal control of central air-conditioning, etc.
Specification
| Measurement Range | 0~±5kpa……±5000kPa | |||
| Overload Pressure | 1.5 times of full scales | |||
| Static Pressure | 3, 5, 10 times of full scales, 20,Mpa | |||
| Accuracy | ±0.25%F.S, ±0.5%F.S | |||
| Long Term Stability | Typical value: 0.1%F.S, Maximum: 0.2%F.S | |||
| Working Temperature | -40°C~85°C | |||
| Compensated Temperature | -10°C~70°C | |||
| Medium Compatibility | All corrosive medium compatible with 1Cr18Ni9Ti and 316L | |||
| Output Mode | Two- wired | Three-wired | ||
| Output | 4~20mA | 0/1~5V | 0~10V | |
| Power Supply | 12~30VDC | 8~36VDC/AC | 11~30VDC/AC | |
| Load Resistance | (U-10)/0.02 | >100k | ||
| Insulation | >100M @50V | |||
| Electrical Strength | 500V @60second | |||
| Impulse Current | 10g/5~2000Hz,axes X/Y/Z20g sine 11ms | |||
| Protection Class |
| |||
| Response Time | 10ms | |||
| Pressure Endurance | 2x106pressure circles @25 | |||
| Electromagnetic Compatibility | Electromagnetic transmit: EN50081-1/-2 Electromagnetic sensitivity: EN50082-2 | |||
| Lighting-proof | Air conduction voltage 8000v, shell or cable conduction voltage 4000V; can also be provided according to customer’s requirement | |||
