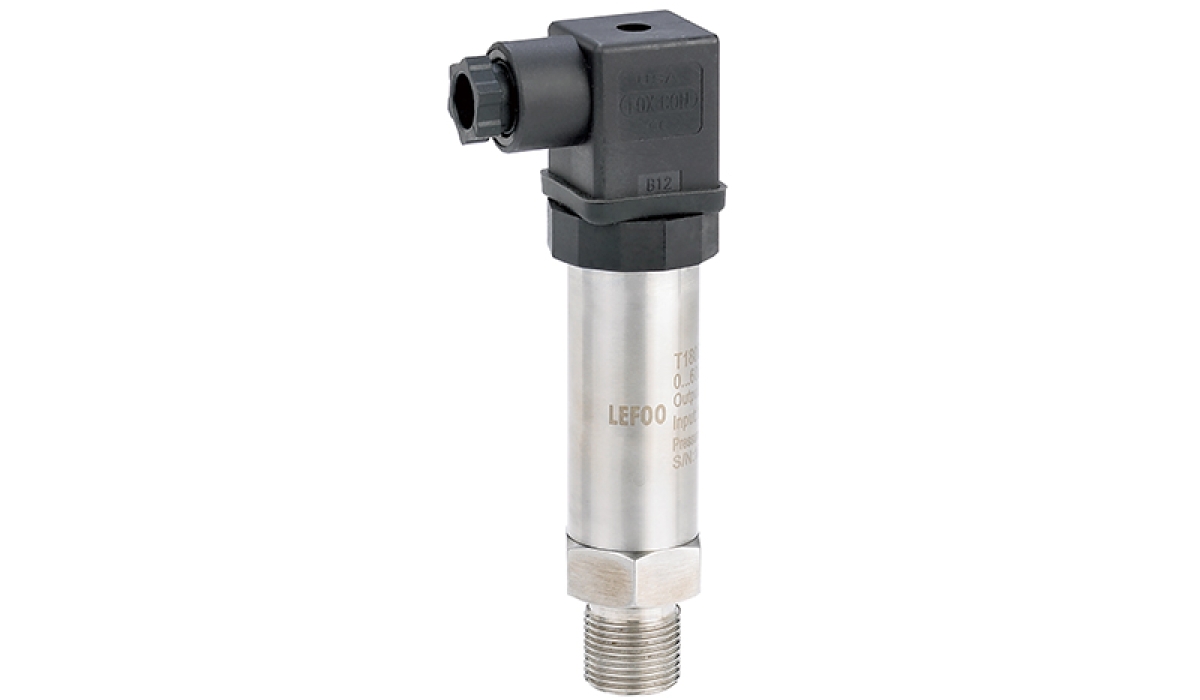

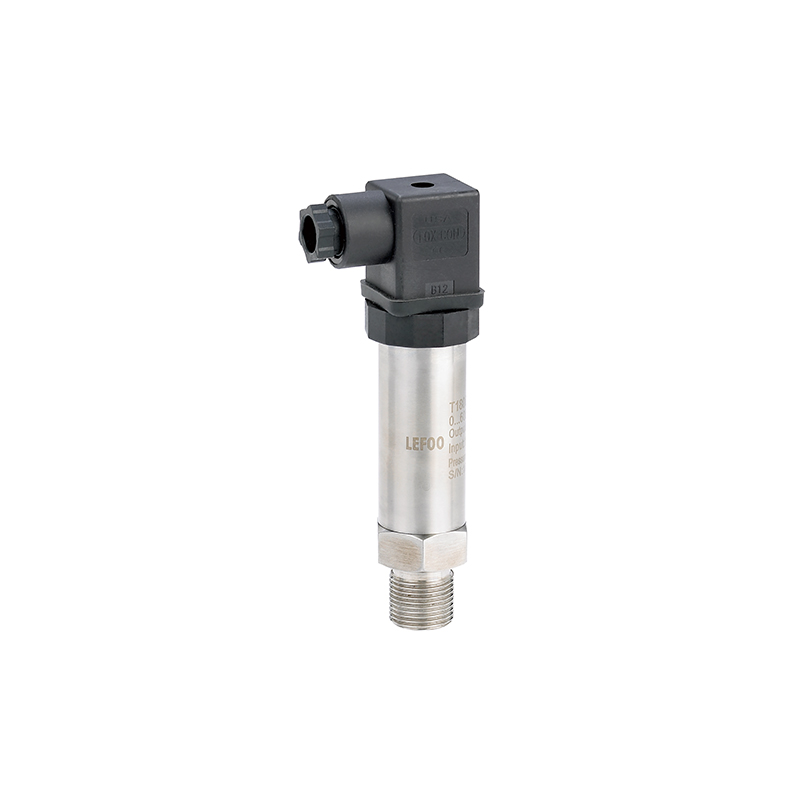

T1800 high temperature Spray-diaphragm pressure transmitter is a product which is characterized by high temperature-proof, wide range and high accuracy. It is widely used in testing gas and liquid pressure, such as water, oil, light hazardous liquid and gas.
Spray-diaphragm core refers to spray an insulation layer on the core by chemical method. Then Wheatstone bridge of metal diaphragm type and temperature compensation are sprayed on the insulated body.
At last, cover a layer of insulation material on the metal diaphragm resistance. The Wheatstone bridge of metal diaphragm will deform in accordance with the core deformation, which is affected by pressure and give a linear output.
Features
±0.1, ±0.25, ±0.5% F.S accuracy
spray-diaphragm core
150°C proof- temperature
entirely welding without O-ring
various connector and pressure connection
non-polar two wire system currency output
Applications
engineering plant, motor engine, high pressure common rail engine, high and low temperature environment, deep well oil pressure measure, boiler pressure checking, natural gas storage equipment and hydraulic lubrication.
Specification
| Measuring Range | 0~0.1MPa......200MPa | ||||
| Overload capability | 2times full scale | ||||
| Burst pressure | 4times full scale | ||||
| Accuracy | ±0.1%F.S, ±0.25%F.S, ±0.5%F.S | ||||
| Stable | typically 0.25%F.S per year, 0.4%F.S(Max) per year | ||||
| Medium temperature range | -50°C~150°C (-50°C~230°C is available on requrest) | ||||
| Compensated Temperature | -20°C~120°C | ||||
| Medium | Liquids and gases, compatible with stainless steel1Cr18Ni9Ti | ||||
| Electrical overview | 2 wire | 3 or 4 wire | |||
| Output | 4~20mA | 0~20mA | 0~10mA | 0~5V | 0~10V |
| Power Supply | 12~30Vdc | 12~30Vdc | |||
| Load | (U-10)/0.02 | (U-10)/0.02 | 20k | ||
| Insulation reistance | 100M @50V | ||||
| Insulation voltage | 500V@60 second | ||||
| Vibration /Constant shock | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | ||||
| Life | 2×106 cycles @25? | ||||
| Electrical Connection | DIN43650C, M12 Series, Packard, Cable | ||||
| Pressure connection | M20×1.5, G1/4, G1/2, R1/2, NPT1/2, NPT1/4 | ||||
| Pressure Type | Guage,Seal Guage, Abosolute | ||||
| Electro Magnetic Compatibility | EN50081-1/-2, EN50082-2 | ||||
