Product Features
1 Up to five installation and output methods are optional
2 New industrial appearance quick installation design, suitable for quick installation
3 Imported Heraeus A-level sensor, high precision, fast response, low temperature drift
4 With excellent anti-interference ability and protection function, CE certification, IP65, ROHS
Product Description

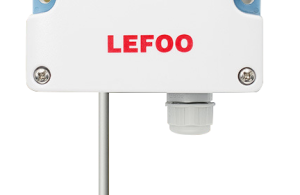

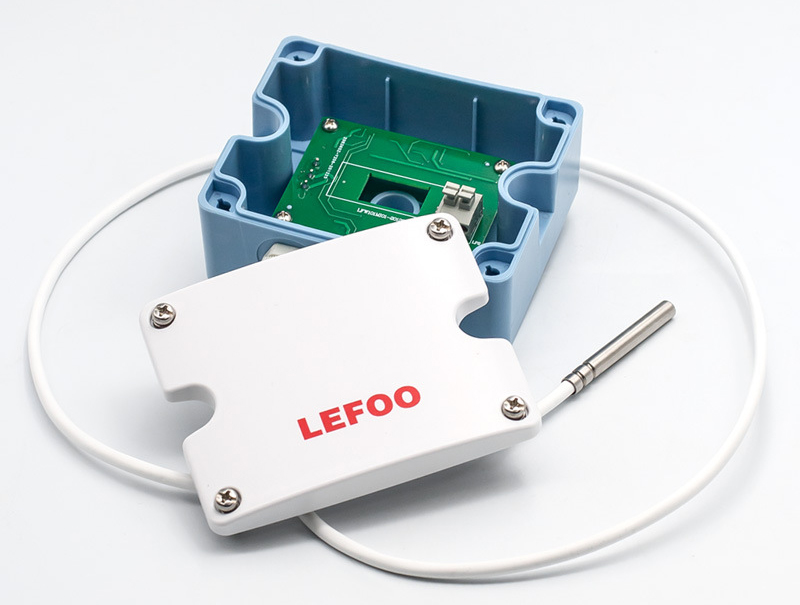

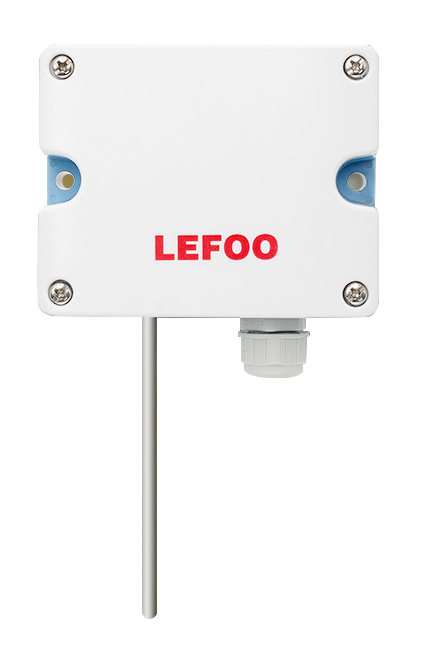

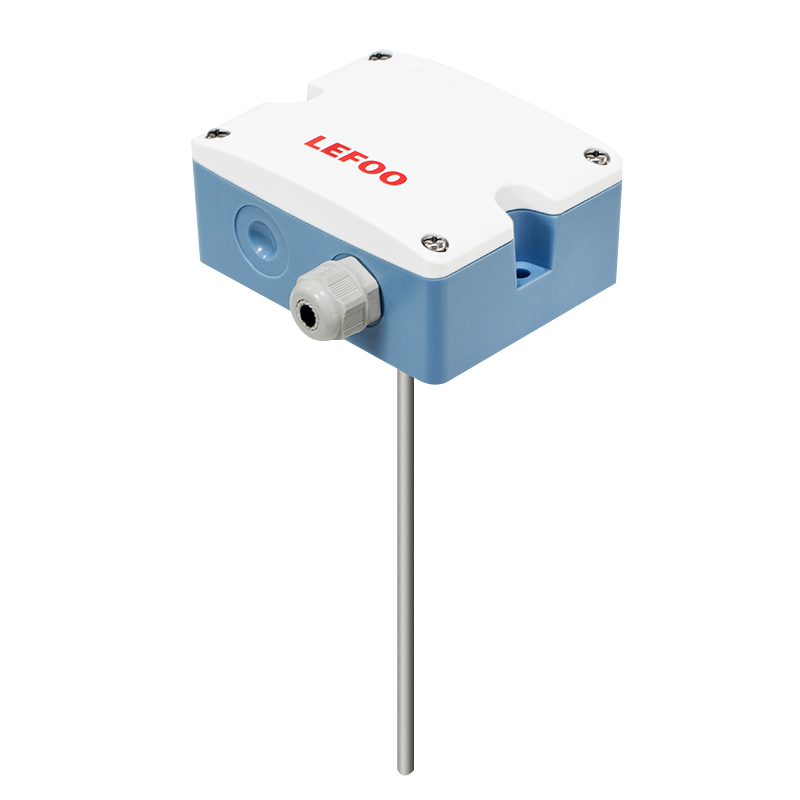

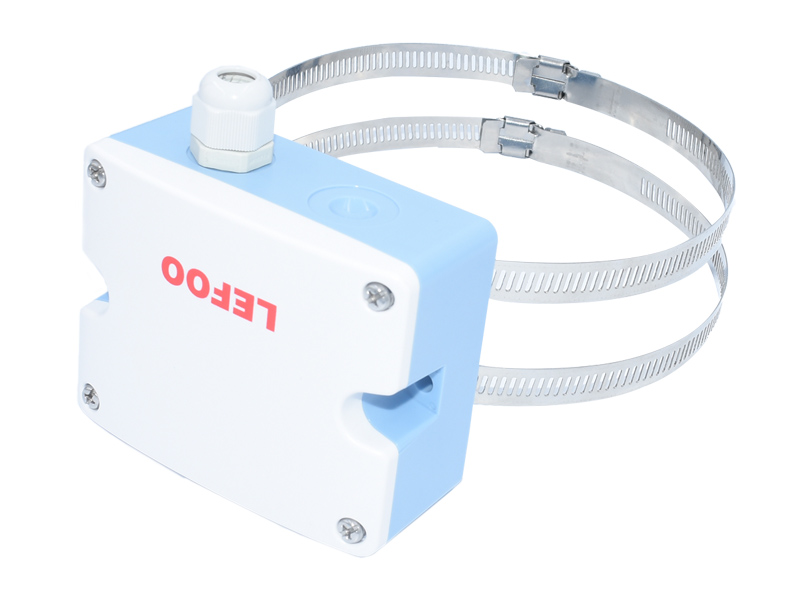

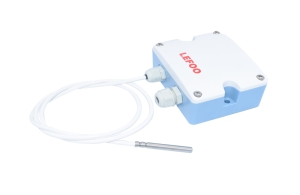

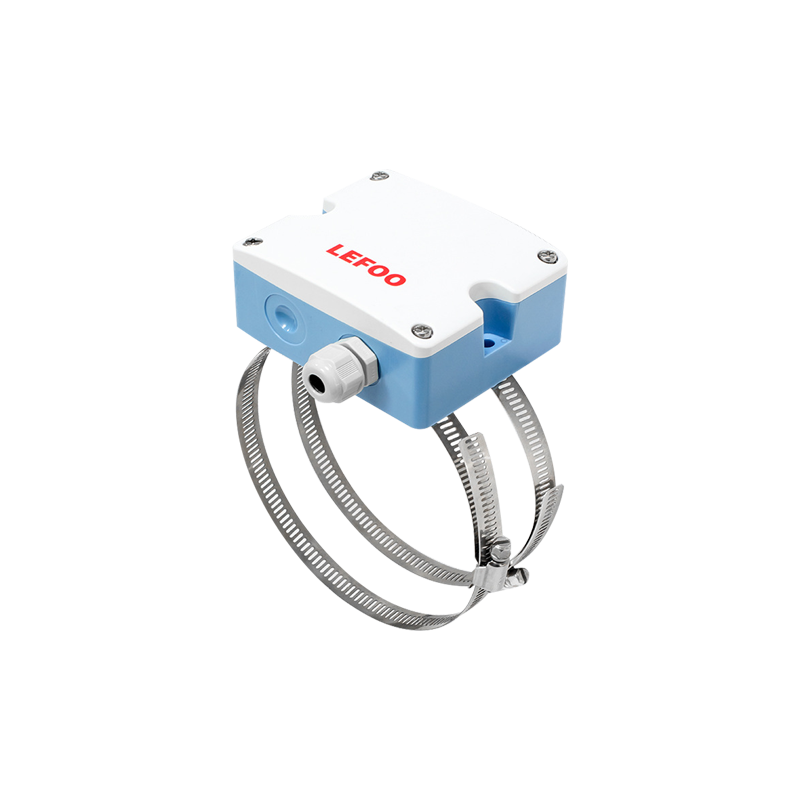

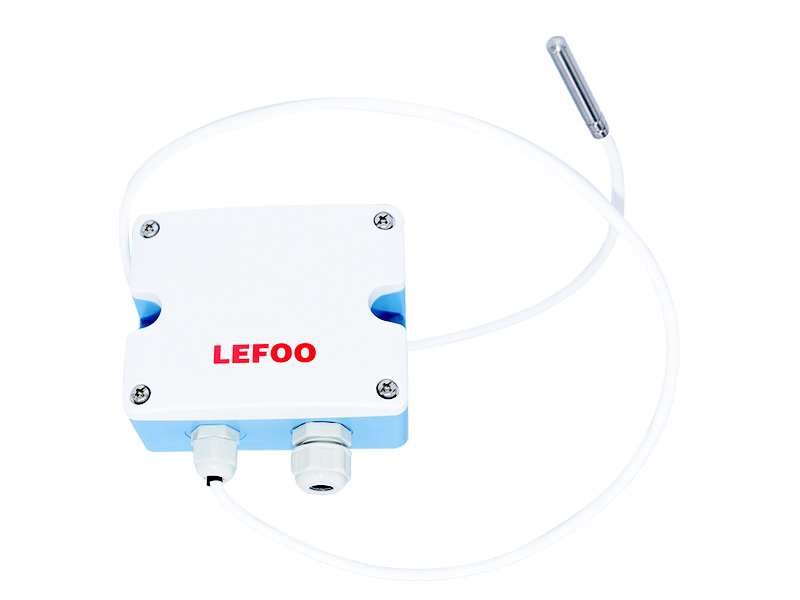

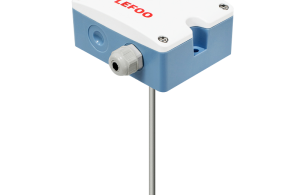

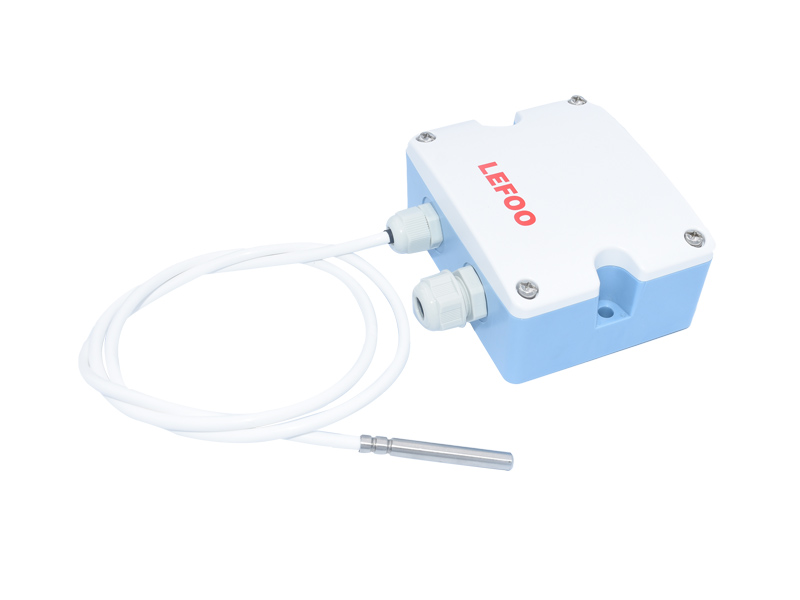

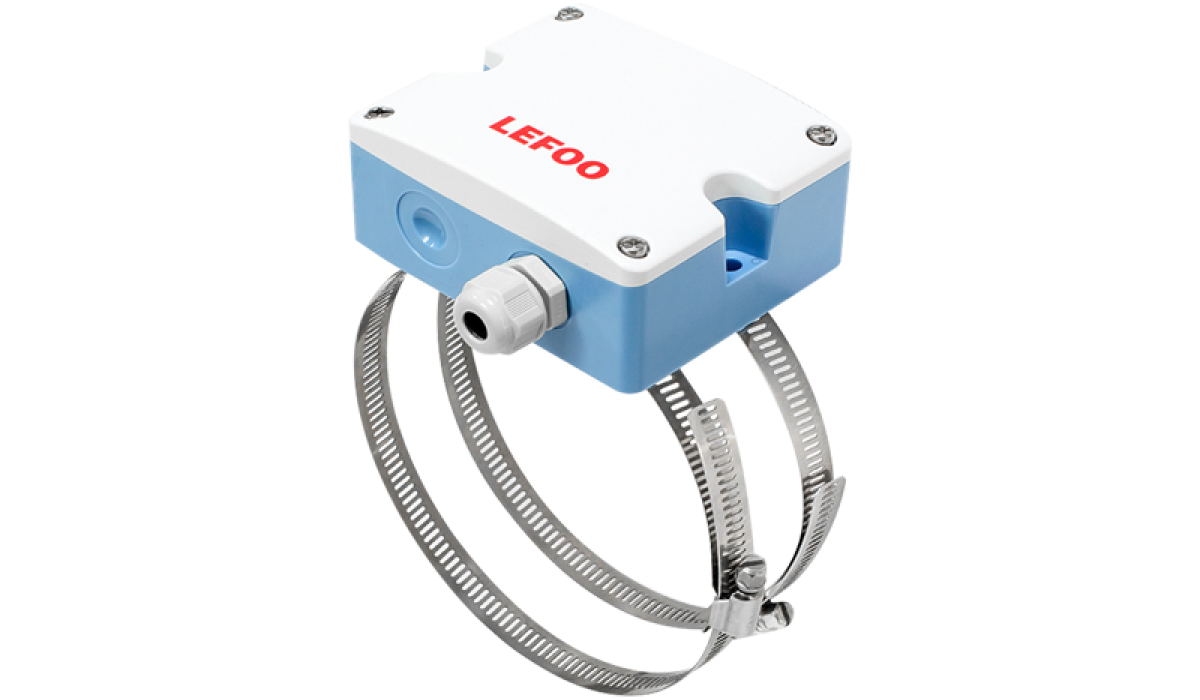

LFW10 series temperature transmitter is a sensor specially designed for industrial applications. It has special design for lightning surge, electrostatic discharge, group pulse, withstand voltage, etc., and has strong anti-interference ability. There are five installation methods: wall-mounted, air duct/water pipe, split, and clamp. Three output modes of current, voltage and thermal resistance are available for selection.
Strong on-site installation capability, and the spring screw/terminal design is suitable for quick installation. It can be widely used in computer rooms, HVAC, buildings, warehouses and other places that require temperature measurement and control.
Technical Parameters
| Sensor | High-precision thermal resistance, see selection table (resistance output type) / PT1000, Class A (analog output type) | |
| Output | 4~20mA or 0~10VDC, 0~5VDC | |
| Exactness | Typical 0.2~0.5°C@25°C, / ±0.2°C@25°C | |
| power | Voltage type:15~35VDC/24VAC±20% | Current type 18.5~35VDC (RL=500Ω) 8.5~35VDC (RL=0Ω) |
| Output load | (Analog output type): ≤500Ω (current type), ≥2KΩ(0~5V), ≥3KΩ(0~10V) | |

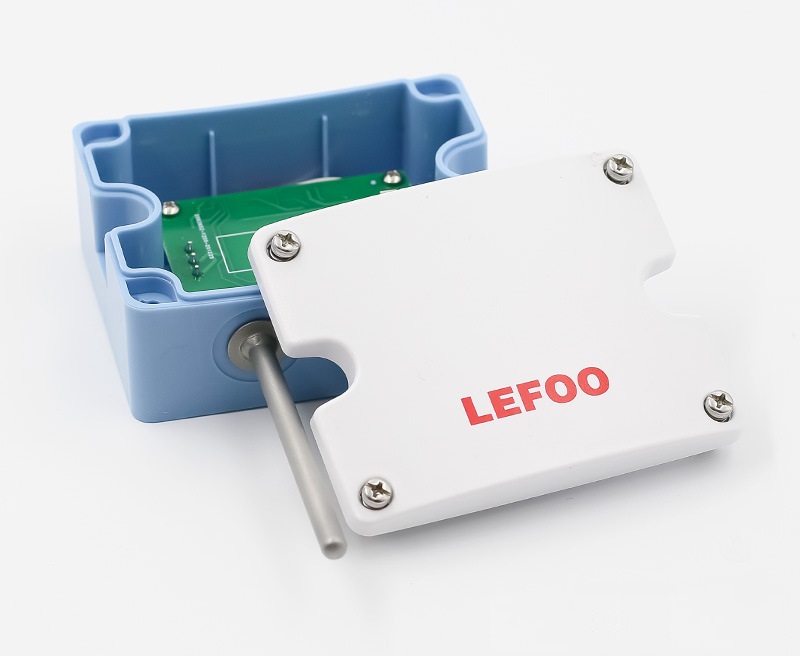

| Casing | PC housing, stainless steel probe (φ6mm), and casing | |
| Work situation | -40~70°C, 0~95%RH (non-condensing) | |
| Liquid prevent level | IP65 | |
