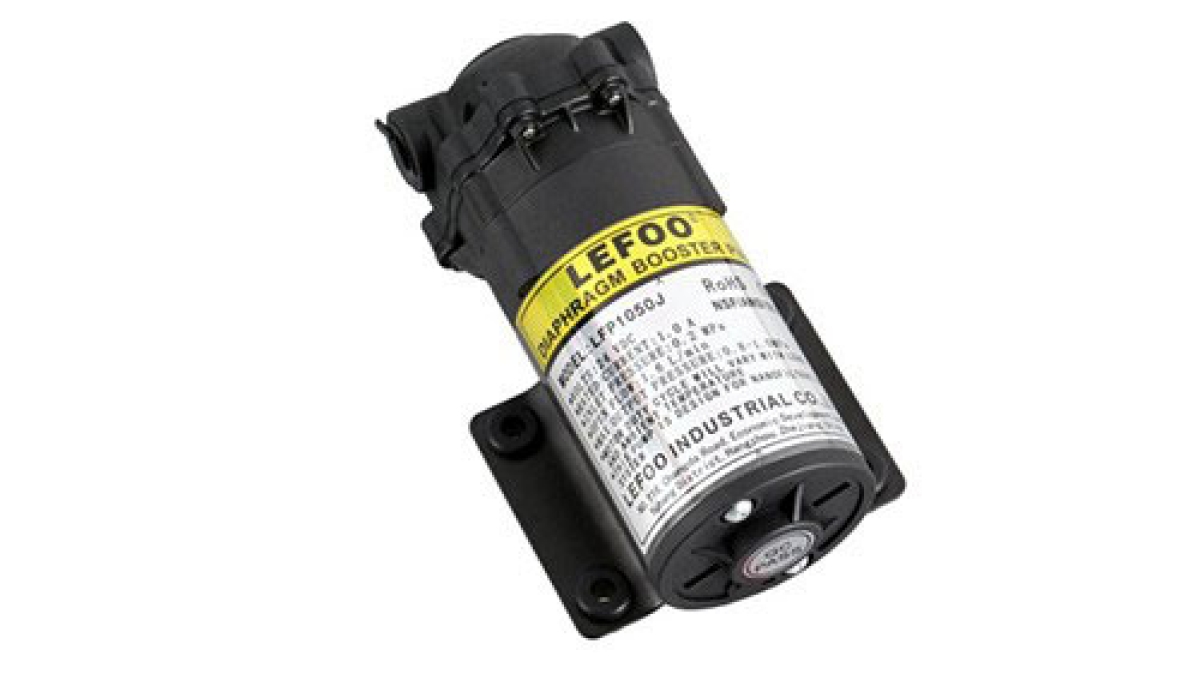

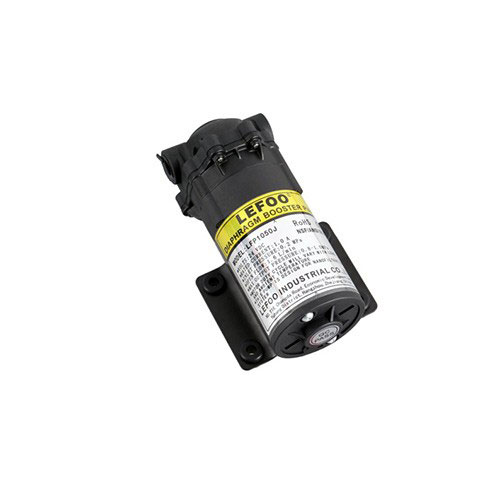

LFP1050-1075J Mini Booster Pump

PRODUCT FEATURES

Compliant with ROSH & CE certifications;

The wet parts complies food grade requirements;

The pressure-containing member adopts high strength plastic and metal materials;

The materials of sealing parts are all imported;

Equipped with high power DC motor with low noise,low vibration;

Totally inspection control in production process for electrical, sealing and water 2/3 proportion size of tranditional pump, widely used in desktop or wall hanging RO pump.



PRODUCT PARAMETERS

Model

LFP1050J

LFP1075J

Voltage

24VDC

24VDC

Connection Thread

3/8"NPT (general)

3/8"NPT (general)

Inlet water pressure

0.2MPa

0.2MPa

Operating pressure

0.5MPa

0.5MPa

Current

≤0.7A

≤0.9A

Work flow

≥550mL/min

≥750mL/min

Open flow

≥1600mL/min

≥1800mL/min

Max Pressure

0.8-1.0MPa

0.8-1.0MPa

Max Current

1.0A

1.2A

Pure water/ condensed water

1:3

1:3
