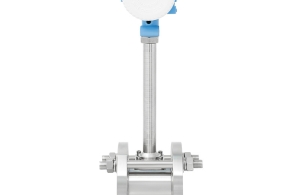

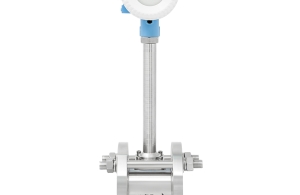

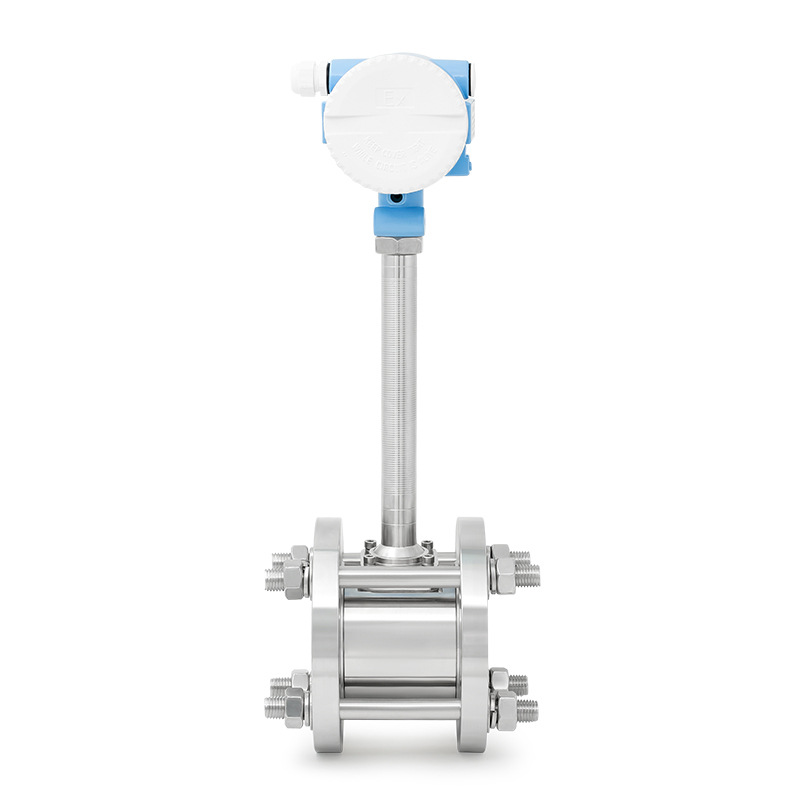

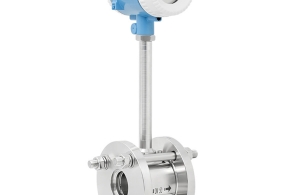

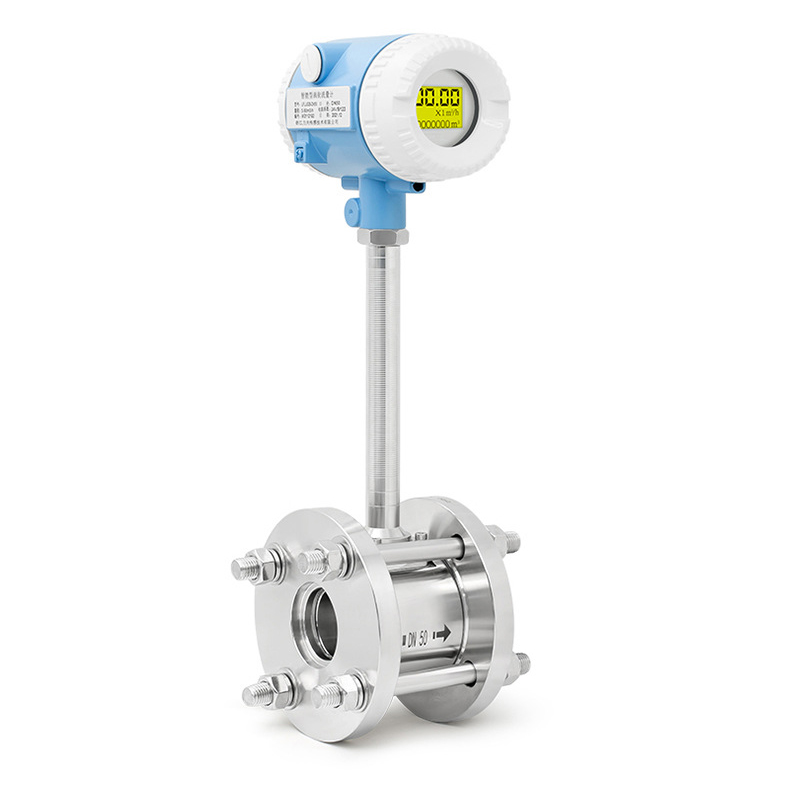

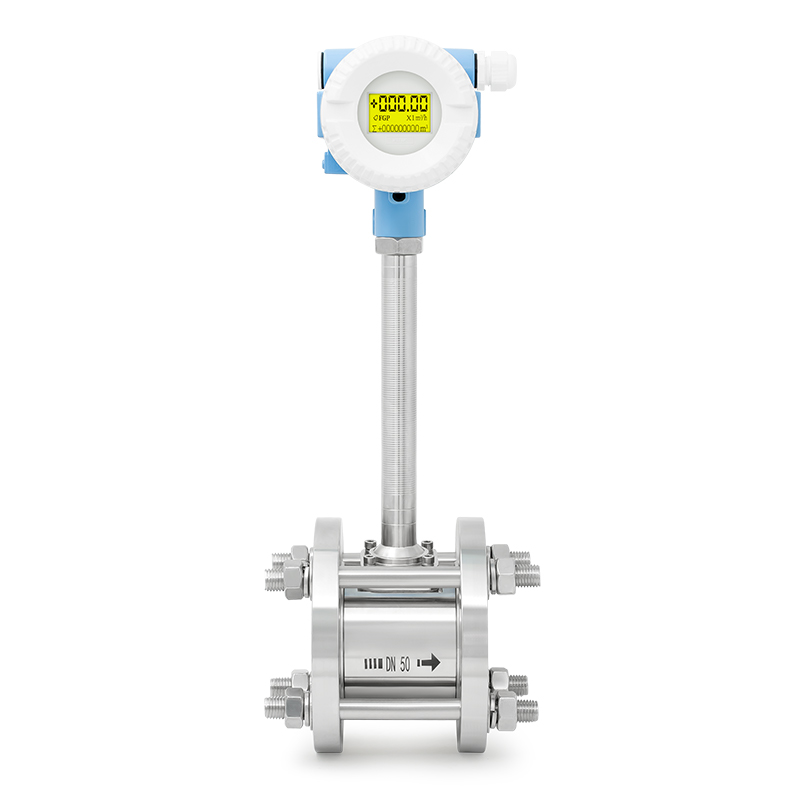

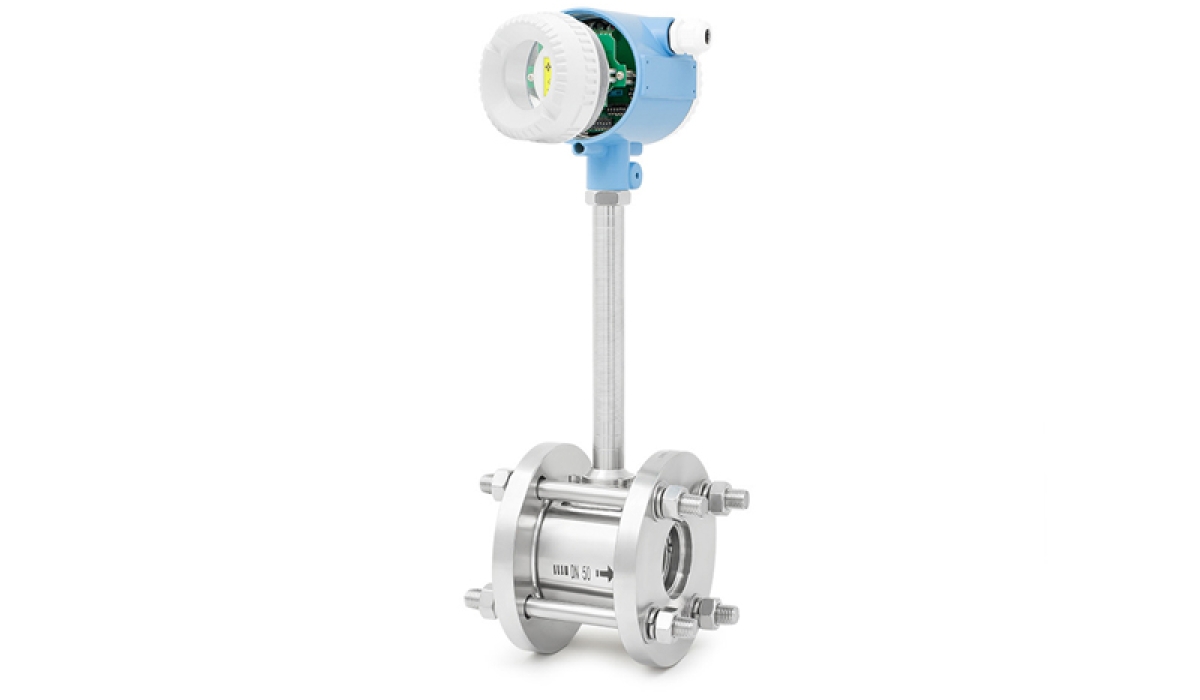

Vortex flowmeter is a volume flowmeter that measures the volume flow of gas, steam or liquid, the volume flow of standard conditions or mass flow according to the Karman vortex principle. Mainly used for flow measurement of industrial pipeline medium fluid, such as gas, liquid, steam and other media. It is hardly affected by parameters such as fluid density, pressure, temperature, viscosity, etc. when measuring the volume flow of the working condition. No moving mechanical parts, so high reliability and low maintenance. Instrument parameters can be stable for a long time.
Features
The structure is simple and firm;
There are many types of applicable fluids;
High precision;
Wide range;
Small pressure loss.
Advantages
1. Simple structure, no moving wear parts.
2. High measurement accuracy and reliability, no need for on-site debugging.
3. It can transmit traffic signals over long distances, and can be networked with computers to achieve centralized management.
4. The amplifying board adopts a unique design, which is universal for gas and liquid.
Specification
| Latus rectum | 10-300mm |
| Maximum velocity of flow | 10m/s |
| Output signal | 4-20mA, HART, RS485 |
| Electrical connection | Connection Terminals |
| Comprehensive accuracy class | 1 |
| Fluid Electrical Conductivity | ≥5μs/cm |
| Power supply | 220VAC, 24VDC |
| Power consumption | <20W |
| Nominal pressure | 4.0MPa / 2.5MPa / 1.0MPa / 0.6MPa |
| Ambient temperature | -25°C ~ 60°C |
| Measured medium temperature | -40°C ~ 350°C |
| Connection flange material | Carbon steel / Stainless steel (304, 316, 316L) |
| Explosion-proof level | IallCT6 (intrinsically safe explosion-proof) |
| Protection grade | IP65 |
| Certification | CE, ROHS |
