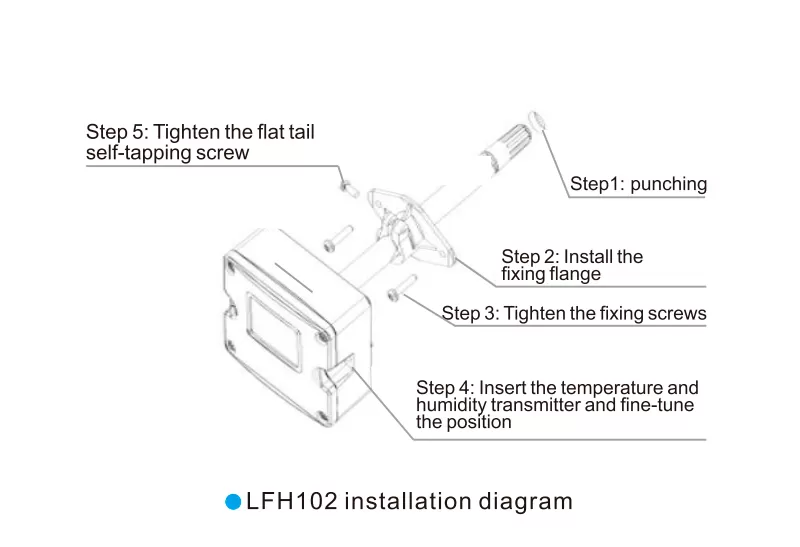

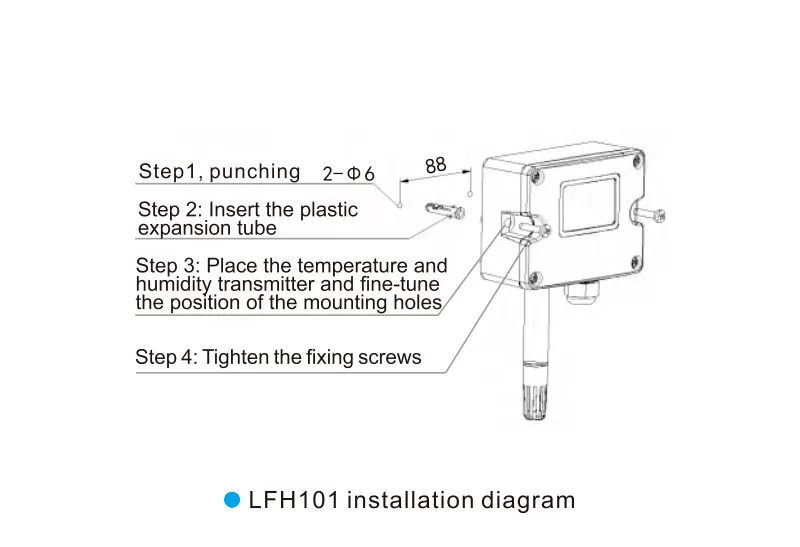

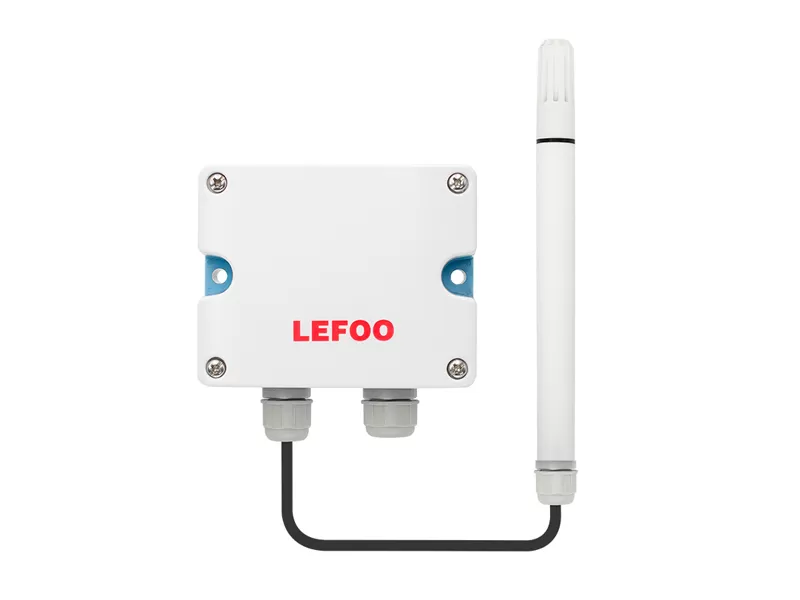

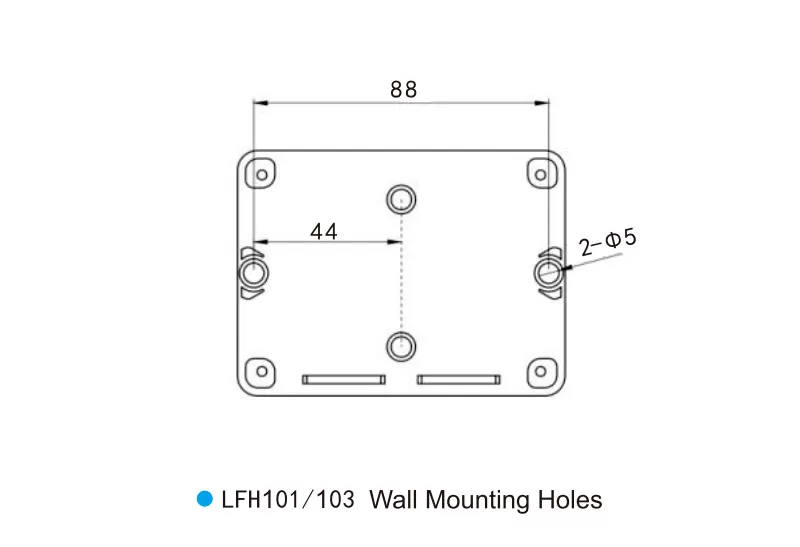

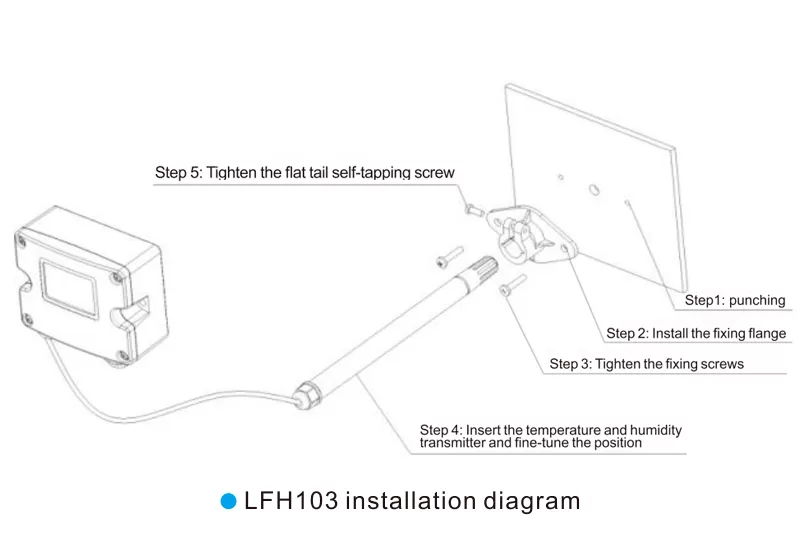

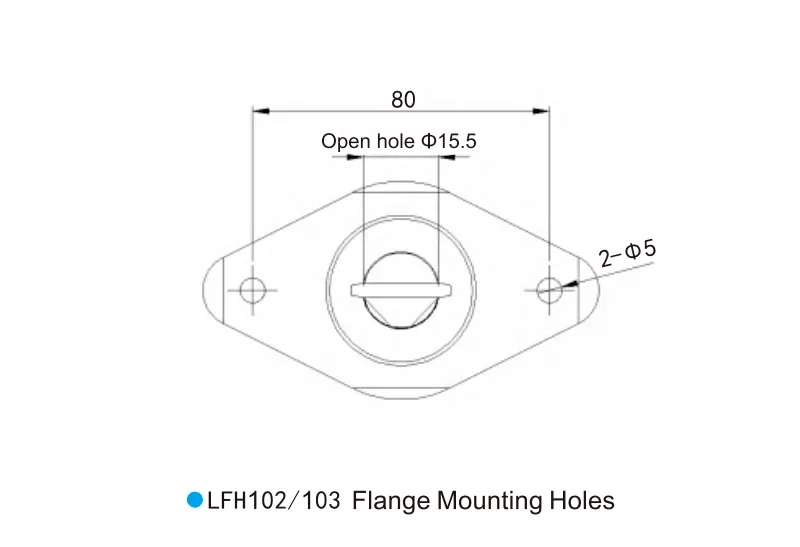

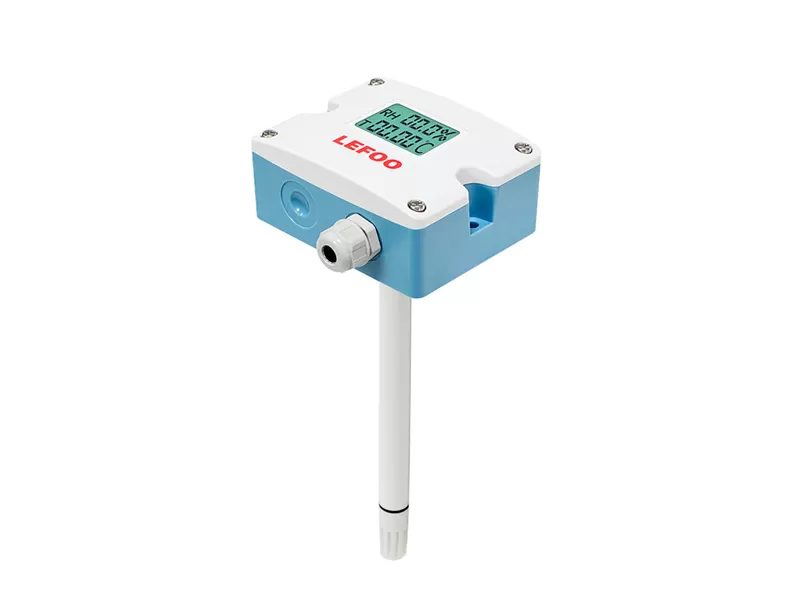

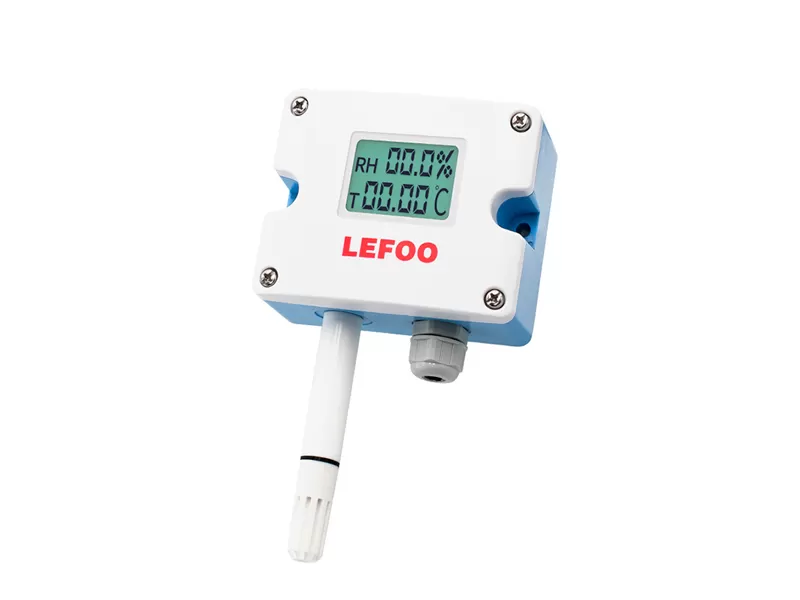

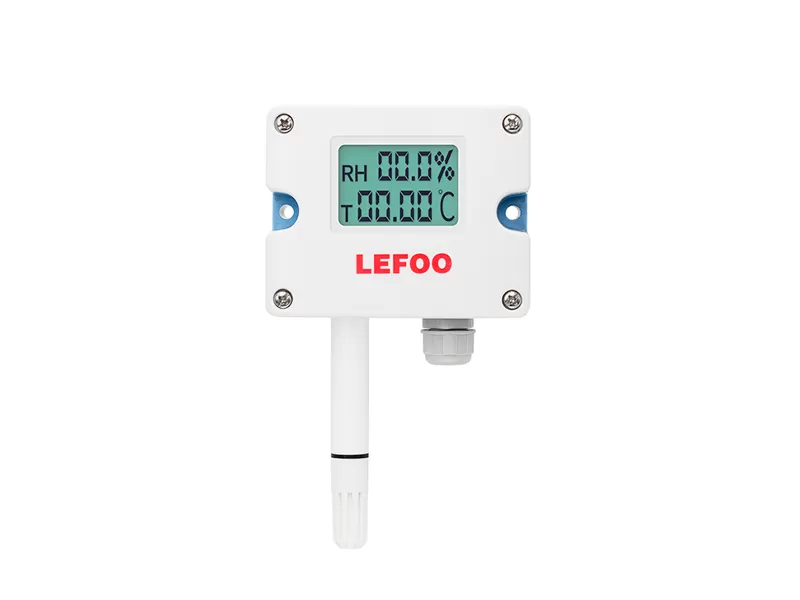

LFH10 Temperature and Humidity Transmitter is specially designed for industrial applications. There are three installation methods:wall-mount, duct type, and split type. Three output models of current, voltage, and Rs485 are optional, with flexiable site installation adaptability. The terminal design is suitable for quick installation. It can be widely used in data room, HVAC, buildings, warehouses and other places need to measure temperature and humidity.
High-precision sensor, long-term stability and anti-interference ability.
A variety of installation methods and output methods are optional.

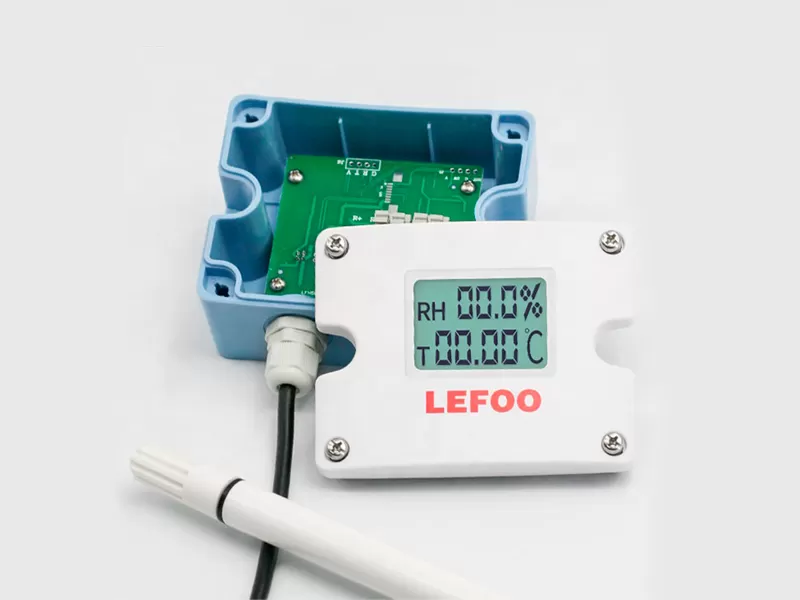

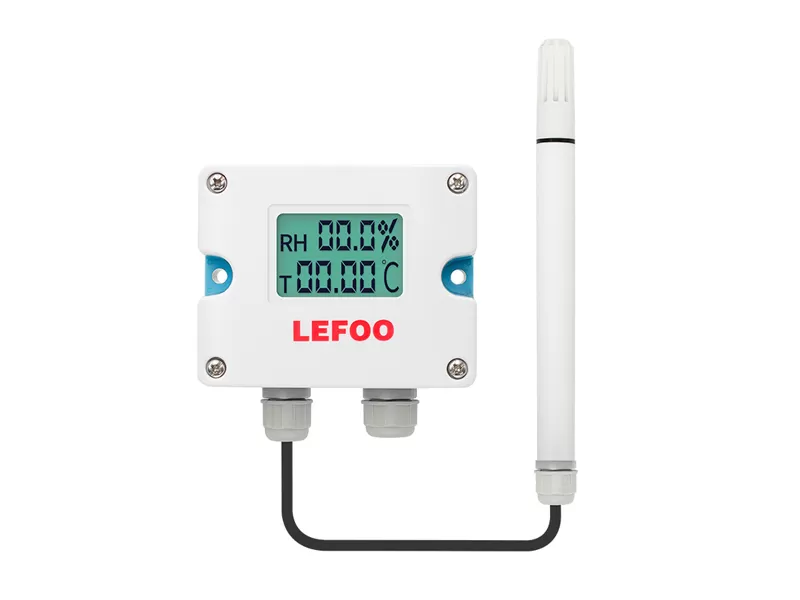

Compact shell design, LCD backlight display, easy to use.
Power supply and output have overvoltage and reverse connection protection, high protection level IP65.
Multiple temperature ranges optional.
1) Relative humidity
Sensor | Digital type |
Measuring Range | 0%~100%RH |
Output | RS485/Modbus, 0~10VDC, 4~20mA optional |
Accuracy | ±3%@20℃ & 20~80%RH |
Response time | ≤10s(20℃, slow flow air) |
2) Temperature
Transducer | Digital type or thermal resistance, see Order Ref No. | |
Measuring Range | 0~50℃, -20~60℃ etc | |
Output | 4~20mA, 0~10VDC, RS485/Modbus Optional | |
Thermal Resistance | See Order Ref No. and Thermal Resistance Indexing Table | |
Accuracy | Digital type: ±0.3℃@0~60℃ Thermal resistance: typical±0.2~0.4℃@25℃, see Order Ref No. | |
Power Supply | Voltage type/485 type: 15~35VDC/24VAC±20% (AC power supply needs to be isolated power supply) | Current type 19.5~35VDC (RL=5002)/9.5~35VDC(RL=0Ω) |
Output Load | ≤500Ω(Current type), ≥2KΩ(Voltage type) | |
Display | LCD display optional, with unit display and backlight(4~20mA without backlight) | |
Shell Material | ABS housing, PC probe and polymer filter(stainless steel probe and sintered/stainless steel wire mesh filter optional | |
Working Environment | -20~60℃, 5%-95%RH(Non-condensing) | |
Protection Grade | IP65 | |
